Horizontal CNC machining center is a high-precision, computer-controlled manufacturing equipment characterized by its horizontally oriented spindle, which is parallel to the machine’s worktable. Unlike vertical machining centers, its spindle axis lies in the horizontal plane, enabling the workpiece to be clamped on a rotary table or pallet system for multi - side processing in a single setup. Equipped with an automatic tool changer (ATC), a rigid machine frame, and advanced CNC systems, it can perform a wide range of operations including milling, drilling, boring, tapping, and reaming with exceptional stability. The horizontal structure allows for efficient chip evacuation during processing, as chips fall away from the cutting zone naturally, reducing tool wear and ensuring consistent machining quality. It is available in various sizes, from compact models for small - batch precision parts to heavy - duty versions for large, complex components in industrial manufacturing.

Horizontal machining center with moving table fixed column type , the tools change system adopts 24 disc , equipped with CNC equal workbench. It can realize the primary loading of various box body, shell, mold and other complex parts, and complete the processing of wok, drilling, milling, expansion, hinge, tapping and other processes.

The overall design layout of the machine tool is inverted "T" font overall structure, the column is moving vertically, and the workbench is moving horizontally. Widely used in industries such as automobiles, internal combustion engines, aerospace, home appliances, and general machinery.

• Its single - setup multi - side machining capability eliminates the need for repeated clamping of workpieces, significantly reducing setup time and positioning errors, thus improving the overall machining accuracy of parts with multiple processed surfaces.
• Its superior chip evacuation performance prevents chip accumulation in the cutting area, which not only extends the service life of cutting tools but also avoids re - cutting of chips, ensuring the surface finish of workpieces.
• It features high production efficiency: the combination of an automatic tool changer and pallet system enables uninterrupted processing—operators can load and unload workpieces on one pallet while the machine processes parts on another, minimizing non - cutting time.
• Finally, its strong rigidity allows for heavy - duty cutting operations, making it suitable for processing hard and tough materials while maintaining stable performance and consistent machining quality even under continuous production conditions.

Details Images:

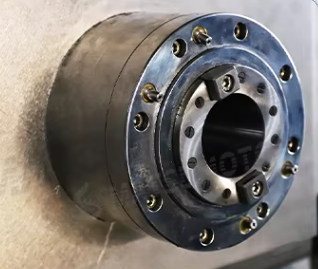

	TAIWAN PRECISION SPINDLE   1.Spindle taper is BT40/BT50. 2. Spindle speed 6000/8000rpm. 3.Taiwan Spindle passed dynamic balance lSO rating test.

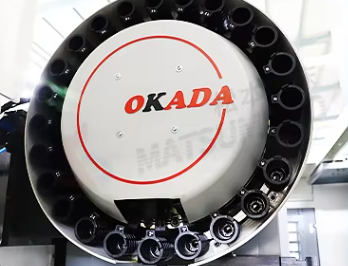

	TOOL MAGAZINE   16 or 24 disc hat knife libraries are available for selection.(Optional)

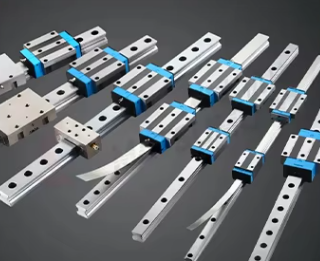

	LINEAR RAIL   Taiwan precision roller rail.

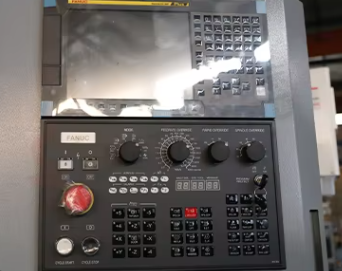

	CONTROL SYSTEM   Standard: FANUC controller.

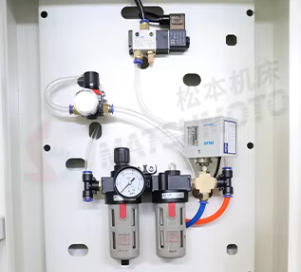

	PNEUMATIC COMPONENTS   Standard with Air TAC Pneumatic Components.

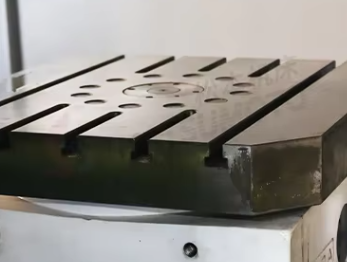

	TABLE   CNC Rotary precision worktable.

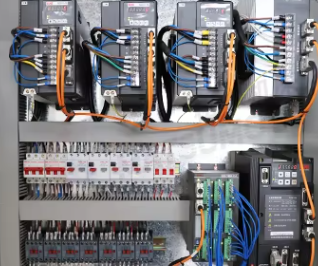

	SCHNEIDER ELECTRICAL COMPONENTS   1.With Schneider safety electrical components. 2. Quick plug as standard.

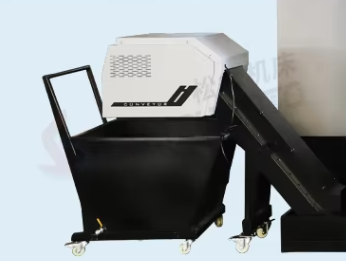

	CHIP CONVEYOR   2 screw type chip conveyor and 1 Chain type chip conveyor.
