Tck46 CNC Horizontal Metal Slant Bed Lathe New Condition Turning Center
Price:
15500-19500
MOQ:
1
Delivery Time:
30 WORKING DAYS
Brand:
Matsumoto
Product Description
Tck46 CNC Horizontal Metal Slant Bed Lathe New Condition Turning Center
Description:

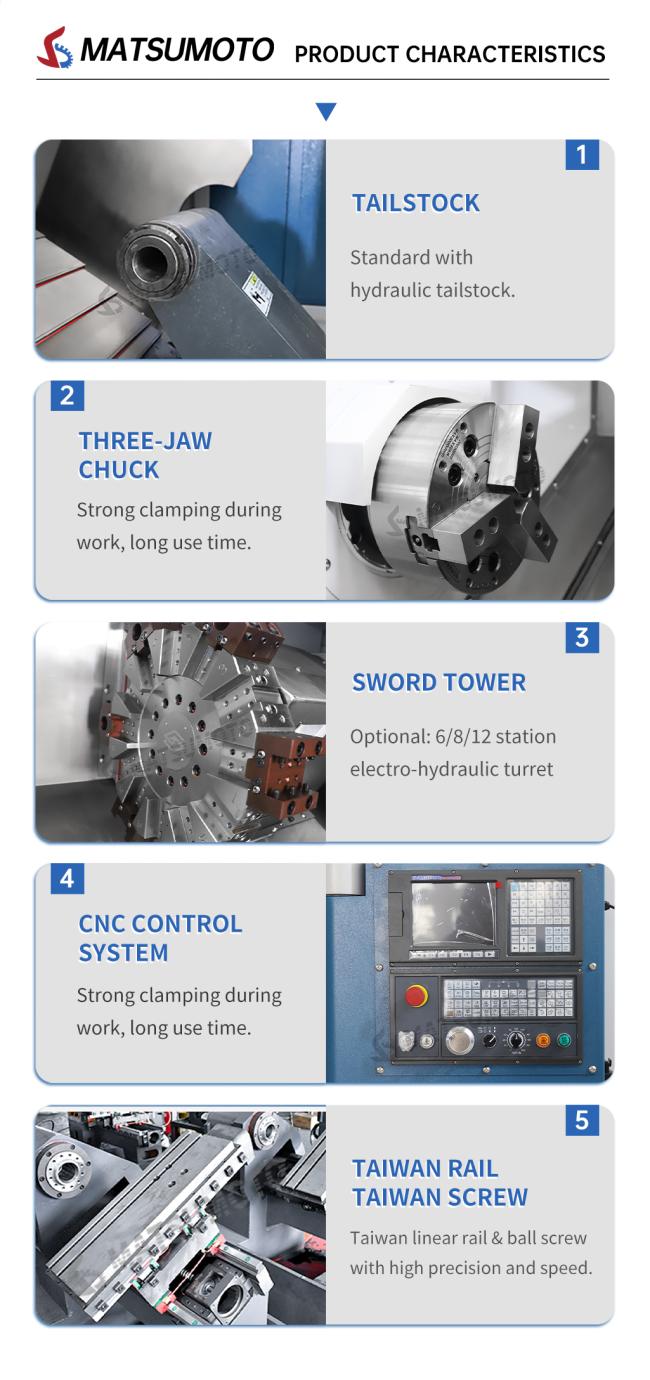

TCK46 is a high-rigidity, precision CNC slant bed lathe designed for efficient machining of medium-sized shaft, disc and sleeve parts with complex features. Adopting a 45° integral high-tension cast iron bed (HT300 material) processed by resin sand casting and double aging treatment, it features an optimized internal rib layout and tubular hollow structure, delivering outstanding (bending resistance), anti-torsion capability and thermal stability.
| Model | Units | TCK46 | |
| Processing capability | Maximum turning diameter | mm | 450 |
| Standard machining diameter | mm | 160 | |
| Maximum processing diameter | mm | 280 | |
| Maximum processing length | mm | 300 | |
| Spindle through-hole diameter | mm | 35/45 | |
| Displacements | X-axis displacements | mm | 180 |
| Z-axis displacements | mm | 300 | |
| Machine spindle | Speed | rpm | 0-4000 |
| Minimum division angle (Cs axis control) | deg | - | |
| Spindle nose type | - | A2-5 | |
| Through-hole diameter | mm | 35/45 | |
| Bearing inner diameter | mm | 85/90 | |
| Blade | Number of tool clamps | - | 8 |
| Height of rectangular handle | mm | 25 | |
| Boring bar handle diameter | mm | 32 | |
| Tailstock | Tailstock movement amount | mm | 140 |
| Diameter of tailstock sleeve | mm | 75 | |
| Taper of taper hole on Tailstock sleeve | - | MT5 | |
| Tailstock sleeve displacement | mm | 100 | |
| Feed rate | Rapid feed rate | m/min | X:300/Z:30 |
| Electric Motors | Spindle motor (30 minutes 60%/continuous) | Kw | 7.5/11 |
| Rotating tool motor (15 minutes/continuous) | kw | - | |
| Feed axis motor | Kw | X:1.5/Z:1.5 | |
| Hydraulic pump motor | kw | 1.5 | |
| Cutting fluid pump motor | kw | 0.4 | |
| Required power supply | Power Supply | kVA | 11 |
| Oil tank capacity | Used for hydraulic devices | L | 50 |
| Used for lubricating oil | L | 2 | |
| Used for cutting fluid | L | 60 | |
| Machine tool size | Machine height | mm | 1650 |
| The height from the ground to the center line of the spindle | mm | 980 | |
| Floor area (standard specification) x3 | mm*mm | 2000*1400 | |
| Machine weight | kg | 2300 | |
Application:
The cnc turning center integrates turning, milling, drilling, boring, tapping and other functions, and can perform milling, drilling, tapping and other composite processing of end and side faces.The cnc turning center is used to process revolving parts with complex shape and high precision requirements. The whole process is completed by clamping at one time.
Similar Products
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
Company

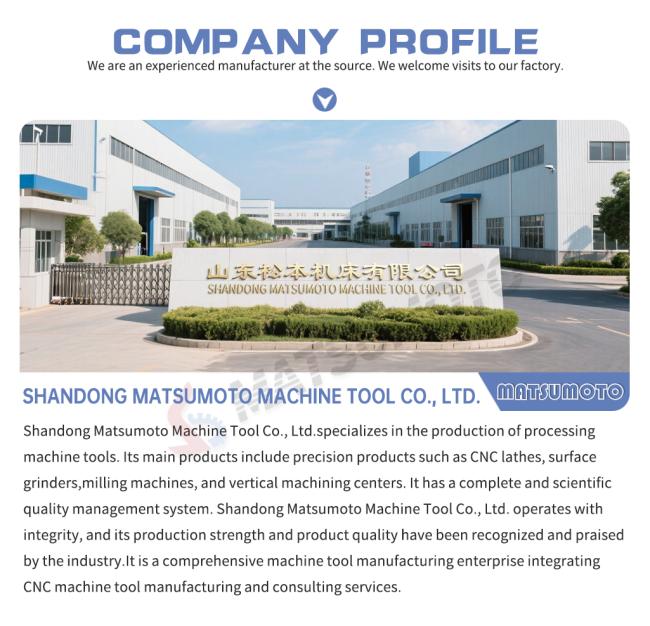

Shandong Matsumoto Machine Tool Co., Ltd.
