TCK66Y CNC Slant Bed Lathe Heavy Duty Turning Milling Machine for Metal Processing

Price Negotiable

Price: 20500USD-25000USD

MOQ: 1

Delivery Time: 30 Working days

Brand: Matsumoto

Product Description

Tck66y CNC Slant Bed Lathe Heavy Duty Turning and Milling Machine for Metal Processing

Description:

The TCK66Y CNC Turning Center is a high-performance horizontal turning machine engineered for precision machining of medium to large-sized workpieces, integrating robustness, efficiency, and versatility. Adopting a 45° slant bed structure made of high-grade cast iron, the machine boasts exceptional rigidity and stability, effectively minimizing vibration during high-speed and heavy-duty machining to ensure superior surface finish and dimensional accuracy.

SPECIFICATIONS	Units	TCK66Y
Swing over bed	mm	660
Swing over cross slide	mm	400
Distance between centers	mm	700
Spindle bore	mm	85
Bar capacity	mm	75
Spindle nose type	-	A2-8
Spindle speed steps	-	Stepless
Spindle speed range	rpm	0-2800

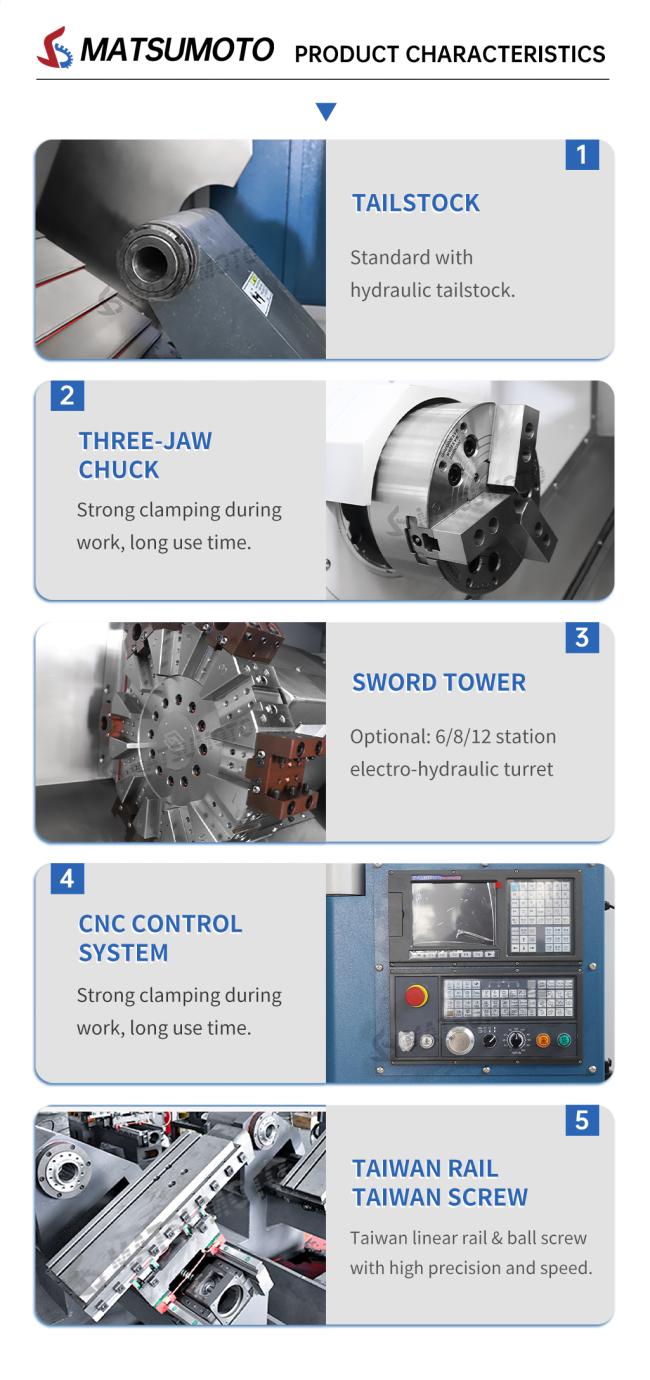

Turret/tool post	-	8 station Hydraulic turret
Tool size	mm	25 x 25
X axis travel	mm	270
Z axis travel	mm	800
X axis rapid traverse	mm/min	18000
Z axis rapid traverse	mm/min	18000
Main spindle motor	kw	11
Tailstock quill diameter	mm	100
Tailstock quill taper	-	MT5
Tailstock quill travel	mm	700
Guide rail type	-	Slant bed linear rail
Machine weight	kg	5000
Overall dimension	mm	3700x2000x2100

Application:

Automotive Industry: Machining of engine parts (crankshafts, camshafts, connecting rods), transmission components (gears, shafts, sleeves), and chassis parts (bushings, pins, hydraulic fittings). The machine’s high torque and precision meet the strict quality requirements of automotive OEMs and tier-1 suppliers.
Aerospace & Precision Machinery: Fabrication of precision shafts, sleeves, flanges, and threaded components for aircraft engines, avionics equipment, and industrial robots. The optional C-axis and live tooling enable one-stop machining of complex integrated parts, reducing secondary operations.
Hydraulic & Pneumatic Industry: Production of hydraulic cylinders, piston rods, valve cores, and pneumatic connectors. The TCK66Y’s stable performance ensures tight tolerance control for sealing surfaces and precision threads, critical for hydraulic and pneumatic system efficiency.
General Machinery Manufacturing: Machining of general-purpose shafts, gears, pulleys, and housings for pumps, compressors, motors, and agricultural machinery. Its customizable turning length and strong material adaptability cater to diverse production needs.
Energy & Petrochemical Industry: Fabrication of precision components for oil pumps, valves, and pipelines, including stainless steel and alloy parts that require corrosion resistance and high strength. The machine’s heavy-duty structure handles large-diameter workpieces commonly used in this sector.
Medical Equipment & Hardware: Production of medical instrument components (surgical tool shafts, implantable parts) and high-precision hardware (precision screws, nuts, bearings). The TCK66Y’s high accuracy and surface finish meet the stringent standards of the medical and precision hardware industries.
