M7163 Hydraulic Transmission Metal Surface Grinder With Magnetic Chuck

Price Negotiable

Price: $10500-12000

MOQ: 1

Delivery Time: 15 working days

Brand: Matsumoto

Product Description

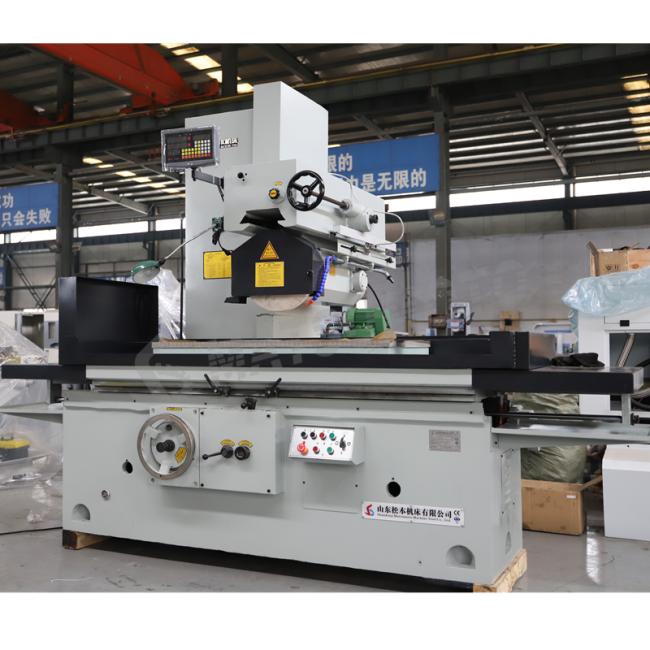

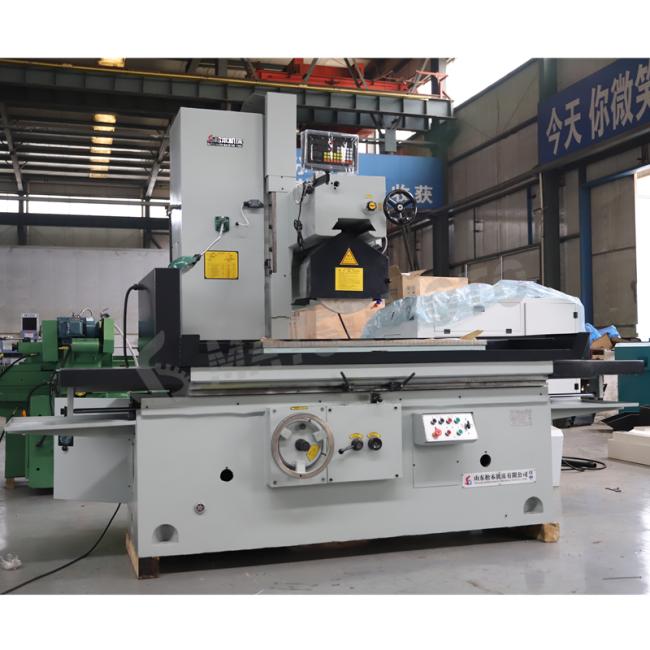

M7163 Hydraulic Surface Grinder Metal Surface Grinding Machine with Magnetic Chuck

Description:

Surface Grinder Grinding Machine is a universal surface grinding machine, with reasonable structure, good rigidity,beautiful appearance, easy to operate and other advantages. Suitable for grinding steel, cast iron and non-ferrous metal parts in machine

Specification		Unit	M7163*1250	M7163*1600	M7163*2000
Table size(L*W)		mm	1250*630	1600*630	2000*630
Max. Longitudinal feed of table		mm	1350	1700	2100
Distance from spindle center to table		mm	800	800	800
Max. transverse movement of grinding head		mm	700	700	580
Max. vertical movement of grinding head		mm	600	600	600
Grinding head vertical feed	per gra	mm	0.01	0.01	0.01
Handwheel scale value	per rev	mm	1.00	1.00	1.00
Fast lifting machine	power	kw	0.37	0.37	0.37
Fast lifting machine	speed	r/min	1450	1450	1450
Wheel size(ODWID)		mm	40012740	40012740	40012740
Grinding wheel speed		r/min	1440	1440	1440
Main motor power		kw	14	14	14
Wheel spindle motor power		kw	7.5	7.5	7.5
The oil pump motor		kw	5.5	5.5	4
Work precision		mm	300:0.008	300:0.008	300:0.008
Surface roughness		um	Ra0.63	Ra0.63	Ra0.63
Machine weight		kg	5600	5600	4800
Overall dimension(LWH)		mm	380027002350	440017002430	540017002430

Details Images:

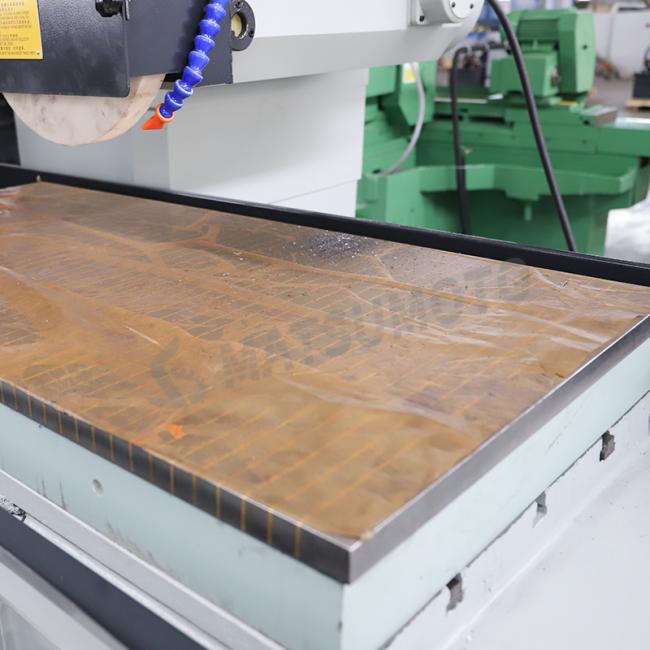

	ELECTRIC MAGNETIC CHUCK Standard with electric magnetic chuck, can tighten many pany parts and even small parts, easy to operate, save time.

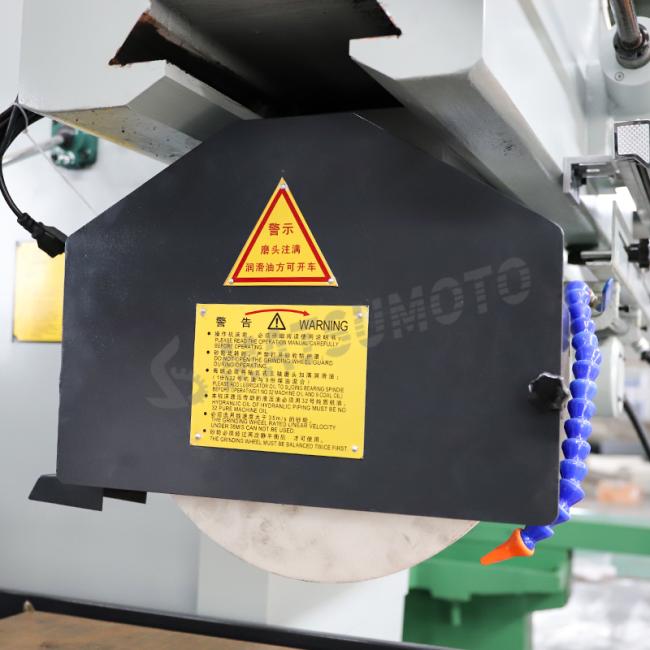

	GRINDING WHEEL Large grinding volume, can grinding various planes and complex forming surface. Worklamp as standard.
	HYDRAULIC TRANSMISSION Reasonable structure, imported hydraulic transmission. Grinding and transmission synchron-ization.
	OPTIONAL ACCESSORIES Electronic digital display, stable and precise measurement, quality assurance.
