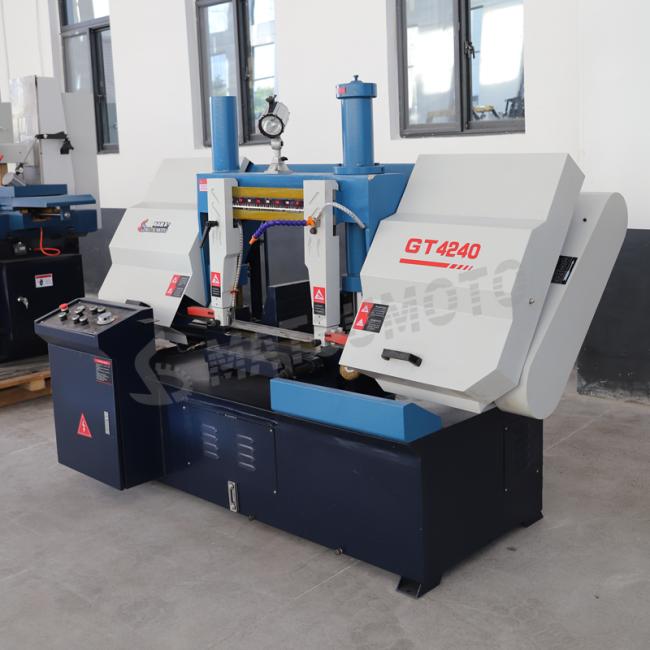

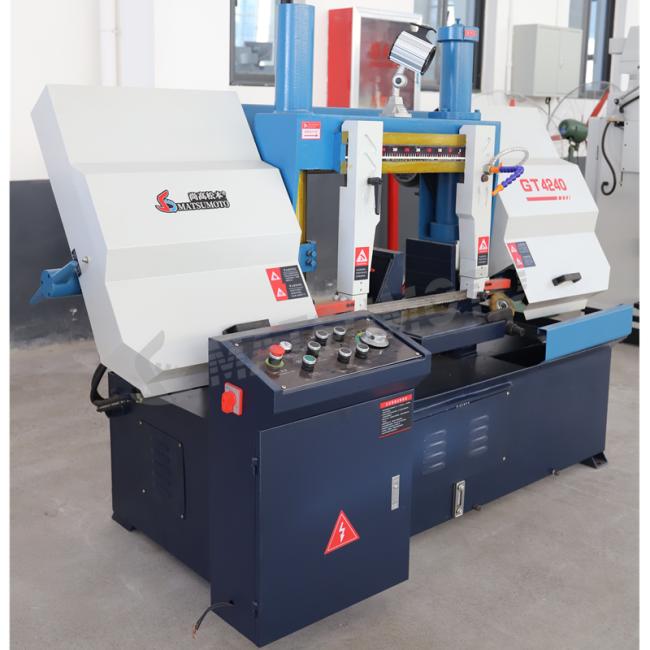

Hydraulic Control GT4240 Industrial Metal Cutting Bandsaw Double Column 19-86m/Min
GT4240 Metal Cutting Machine Double Column Band Saw Machine
Characteristics:
1. Button type control panel, sawing mode change flexible, manual and automatic combination.
2. PLC controller, complete automatic sawing process, feeding length 0-500 mm.
3. Double upright column structure, vertical lift, high stability.
4. Cutting speed hydraulic control, stepless regulation speed.
5. Stable performance, high efficiency, suitable for bulk material sawing.
| Main technical parameters | GT4240/GHS4240 | |
| Swing range | Round steel | Φ400mm |
| Square material | 400*400mm | |
| Belt saw blade size | 32*1.1*4590mm | |
| Saw blade speed | 19-86m/min | |
| Motor power | Main motor | 3kw |
| Oil pump motor | 1.5kw | |
| Cooling pump motor | 0.09kw | |
| Hydraulic system pressure | 3.2MPa | |
| Working table height | 575mm | |
| Swing machine external form size | 2264*1304*1862mm | |
| Package size | 2678*1780*2150mm | |
| NW/GW | 1410/1800kg | |
|
Standard equipment: |
Optional equipment: |
|
Hydraulic workpiece clamping 1 saw blade belt Material support stand Coolant system Work lamp Operator manual |
Automatic blade breakage control Fast drop protection device Hydraulic blade tension Automatic chip removal device Various blade linear speed Blade protection covers Wheel cover opening protection CE standard electrical equipment |
Usage:
Cutting various metal materials such as steel, aluminum, copper, and alloy bars, pipes, profiles, and solid blocks.
- Straight cutting, angle cutting, and contour cutting in metalworking, manufacturing, maintenance workshops, and construction sites.
- Mass production cutting, blanking, and material preparation in fabrication shops, automotive, and machinery industries.
- Cutting wood, plastic, and other non-metallic materials in appropriate models.
-
Details Images:
|
|
TENSIOM ADJUSTMENT
The band saw tension can be adjusted according to different working conditions to improve sawing efficiency. |
|
|

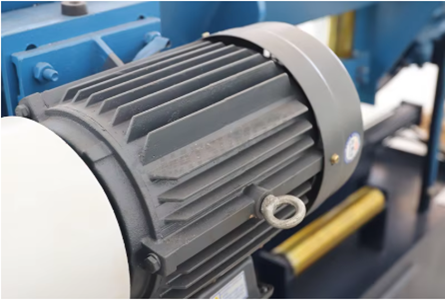

REDUCER
Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw. |
|
|

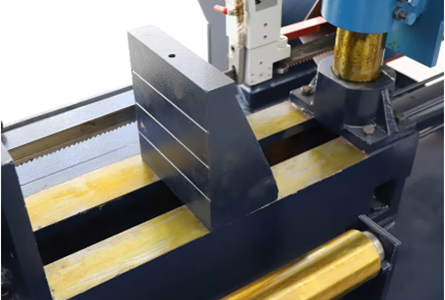

CLAMPING METHOD
The power is hydraulic, which is more stable, and the jaws are made of high-density ductile iron, which is firm. |
|
|

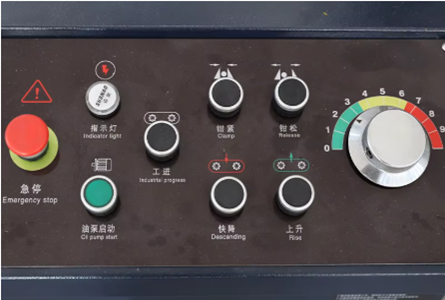

DETAL PLC OPERATION
Easy to operate, improve processing efficiency and reduce misoperation. |
