GSK4240 CNC Metal Cutting Band Saw Machine High Precision Tension Adjustment
GSK4240 CNC Band Sawing Machine Metal Band Sawing Machine Factory Direct Sales
-
The main performance characteristics:
-
Double up right column machine type, rigidity good stability.
-
Hand wave feeding mechanism, sawing automatic cycle.
-
Feeding stepless speed change, saw belt stepless speed change.
-
The size of the positioning device, for batch production.
-
Application:
For high precision metal cutting is the ideal equipment for the industrial and mining enterprises and small workshops, use is very extensive.
|
Main technical parameters |
GSK4240 |
|
|
Swing range |
Round steel |
Φ400mm |
|
Square material |
400*400mm |
|
|
Belt saw blade size |
32*1.1*4590mm |
|
|
Saw blade speed |
19-86m/min |
|
|
Motor power |
Main motor |
3kw |
|
Oil pump motor |
1.5kw |
|
|
Cooling pump motor |
0.09kw |
|
|
Hydraulic system pressure |
3.2MPa |
|
|
Working table height |
575mm |
|
|
Sawing machine external from size |
2264*1304*1862mm |
|
|
Package size |
2678*1780*2150mm |
|
|
N.W/G.W |
1410/1800kg |
|
-
Details Images
|
|
TENSION ADJUSTMENT
The band saw tension can be adjusted according to different working conditions to improve sawing efficiency. |
|
|

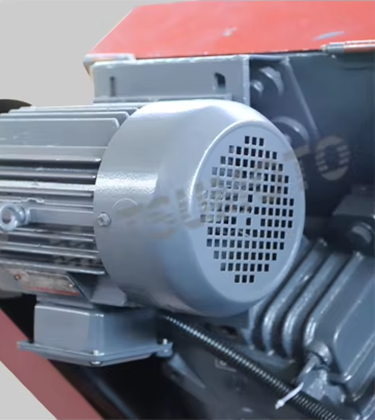

REDUCER
Smooth operation, no noise, speed reduction and increase torque, bid farewell to the stuffy car and the saw. |
|
|
CLAMPING METHOD
The power is hydraulic,which is more stable, and the jaws are made of high-density ductile iron,which is firm. |
|
|
PLC CONTROL
PLC control for automatic cutting. |
