T7 Vertical CNC Drilling And Tapping Center High Speed CNC Machining Center
Price:
$15000-18000
MOQ:
1
Delivery Time:
15 working days
Brand:
Matsumoto
Product Description

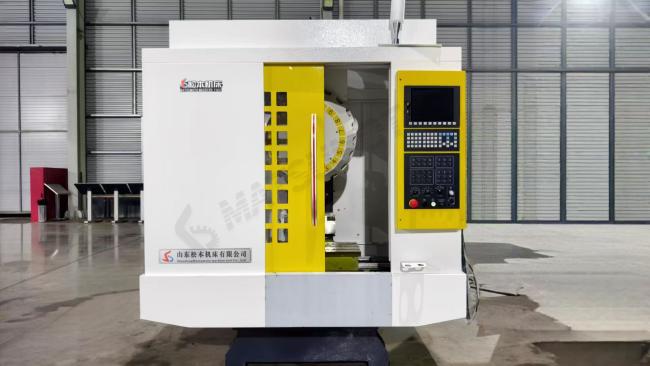

T7 Vertical CNC Drilling and Tapping Center for Metal CNC Machining Center
Description:
This CNC drilling and tapping center is a high-speed, high-precision machining machine mainly used for drilling, tapping, chamfering, and light milling operations. It features a high-speed spindle, fast tool change, and high positioning accuracy, suitable for efficient batch processing of plate, shell, and mold parts.
Applications:
- Drilling, reaming, and tapping on metal parts
- Processing of automotive parts, 3C products, and hardware components
- Batch production of parts with multiple holes
- Chamfering, spot facing, and light milling
| Item | Unit | T7 |
| Table Size | mm | 800×420 |
| T-slot (Size×Pitch×Qty) | mm | 18×90×3 |
| Max. Table Load | kg | 300 |
| X-axis Travel | mm | 700 |
| Y-axis Travel | mm | 400 |
| Z-axis Travel | mm | 330 |
| Spindle Nose to Table | mm | 130–460 |
| Spindle Center to Column | mm | 450 |
| Spindle Taper | / | BT30 |
| Spindle Speed | rpm | 20000 (Direct Drive) |
| Cutting Feed Rate | m/min | 1–15 |
| Rapid Traverse Rate | m/min | 48 |
| Positioning Accuracy (JIS 6336-2) | mm | ±0.005 |
| Repeatability Accuracy | mm | ±0.005 |
| Spindle Servo Motor | / | D5.5 |
| Rated Power / Max. Power (30 min) | KW | 5.5 |
| Rated Torque | N.m | 22 |
| Tool Taper | / | BT30 |
| Max. Tool Diameter | mm | 80 |
| Max. Tool Length | mm | 200 |
| Max. Tool Weight | kg | 4 |
| Tool Change Time (T-T) | sec | 1.5 |
| Net Weight | kg | 2500 |
| Overall Dimensions (L×W×H) | mm | 1750×2150×2100 |
Advantages:
- High-speed spindle and fast tool change for high efficiency
- High positioning accuracy ensures stable machining quality
- Compact structure, small footprint, easy operation
- High rigidity, good stability, and long service life
- Suitable for mass production, greatly reducing processing time
Machine Details:
|
|
Tool magazine
Tool changing speed 1.5s optional 16pcs/21pcs
|
| Spindle
BT30 high-speed direct-connected spindle, spindle speed 20000rpm
|
|
|
|
Ballscrew with servo
Linear Roller Guide Rails
|
|
CNC system Optional GSK, Fanuc, Mitsubishi etc. |
|
