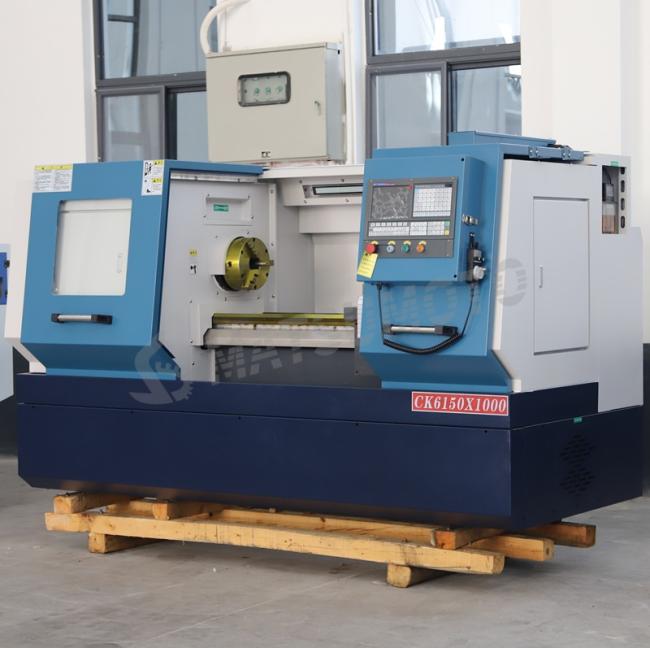

CK6150 Horizontal Flat Bed CNC Lathe Machine CK6163 Metal Lathe Two Three Gear
CK6150 Horizontal Flat Bed CNC Lathe CK6163 CNC Machine for Metal
Application:
CK6150 Lathe Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.
|
PROJECT |
UNIT |
CK6150 |
CK6163 |
|
Max. Swing over bed |
mm |
500 |
630 |
|
Max. Swing Dia.over slide |
mm |
270 |
330 |
|
Max. Processing length |
mm |
750/1000/1500/2000 |
1000/1500/2000/3000 |
|
X axis travel |
mm |
280 |
320 |
|
Spindle speed series |
/ |
Three gear/Promise |
Four gear/Promise |
|
Spindle speed range |
r/min |
50-500/300-1100/600-1600 |
30-84/53-150/125-350/300-835 |
|
Spindle nose |
/ |
A2-8 |
A2-11/C11 |
|
Diameter of spindle through hole |
mm |
82/105/130 |
105 |
|
Taper of spindle front hole |
mm |
MT6 |
140(1:20) |
|
Motor power of spindle |
kw |
7.5 |
11 |
|
Chuck size |
mm |
250 |
320 |
|
X/Z axis servo motor torque |
N.M |
X:5.5/Z:7.5 |
X:10/Z:15 |
|
X/Z axis fast moving |
m/min |
X:6/Z:8 |
X:4/Z:5 |
|
Repeat positioning accuracy |
mm |
±0.005 |
±0.005 |
|
Tail stock quill dia |
mm |
65 |
100 |
|
Tail stock quill travel |
mm |
140 |
250 |
|
Tail stock taper |
/ |
MT5 |
MT6 |
|
Tool post form |
/ |
4-station electric tool post |
|
|
Tool size |
mm |
25*25 |
32*32 |
|
Weight |
kg |
2800 |
4500 |
|
Dimension(L*W*H) |
mm |
2800*1700*1800 |
4250*1920*1800 |

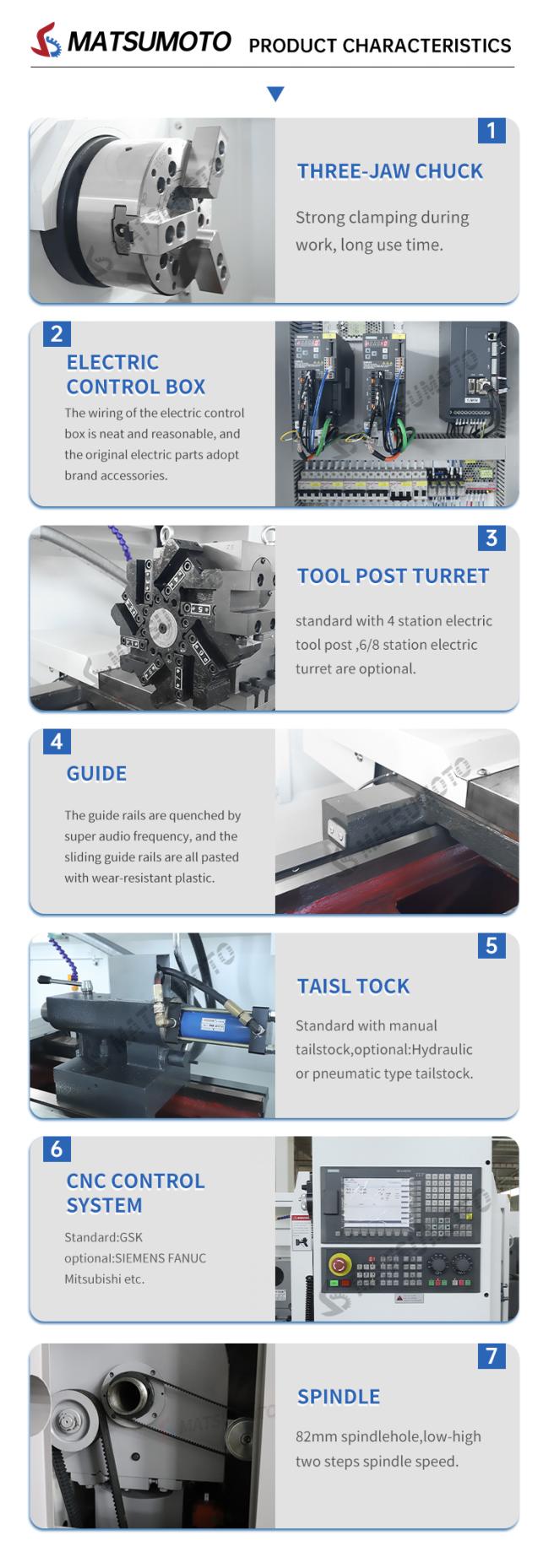

Standard Accessories:
1. System: GSK
2. 3-jaw manual chuck
3. 4-station electric turret
4. Frequency spindle motor
5. Stepless speed changer
6. Manual tailstock
7. Lighting system
8. Cooling system
Machine Details:
