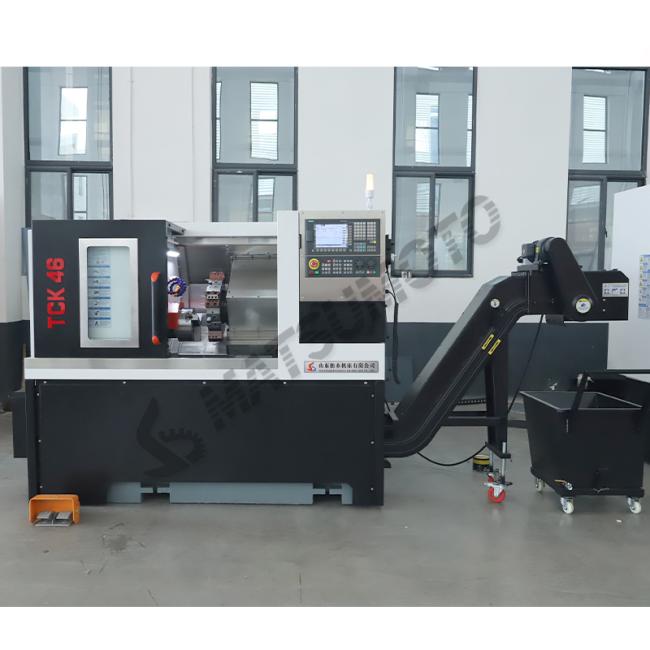

TCK46 High Precision Slant Bed CNC Lathe Machine with 450mm Maximum Turning Diameter and 4000rpm Spindle Speed
Price:
12800-15800
MOQ:
1
Delivery Time:
30 working days
Brand:
Matsumoto
Product Description
Customized TCK46 High Precision with Competitive Price Slant Bed CNC Lathe Machine
Description:
TCK46 is a heavy-duty slant bed CNC turning machine, engineered for high-precision turning, drilling and boring of medium-sized metal parts. Adopting integral high-strength cast iron structure, it features excellent rigidity, stable operation and long-term processing accuracy.

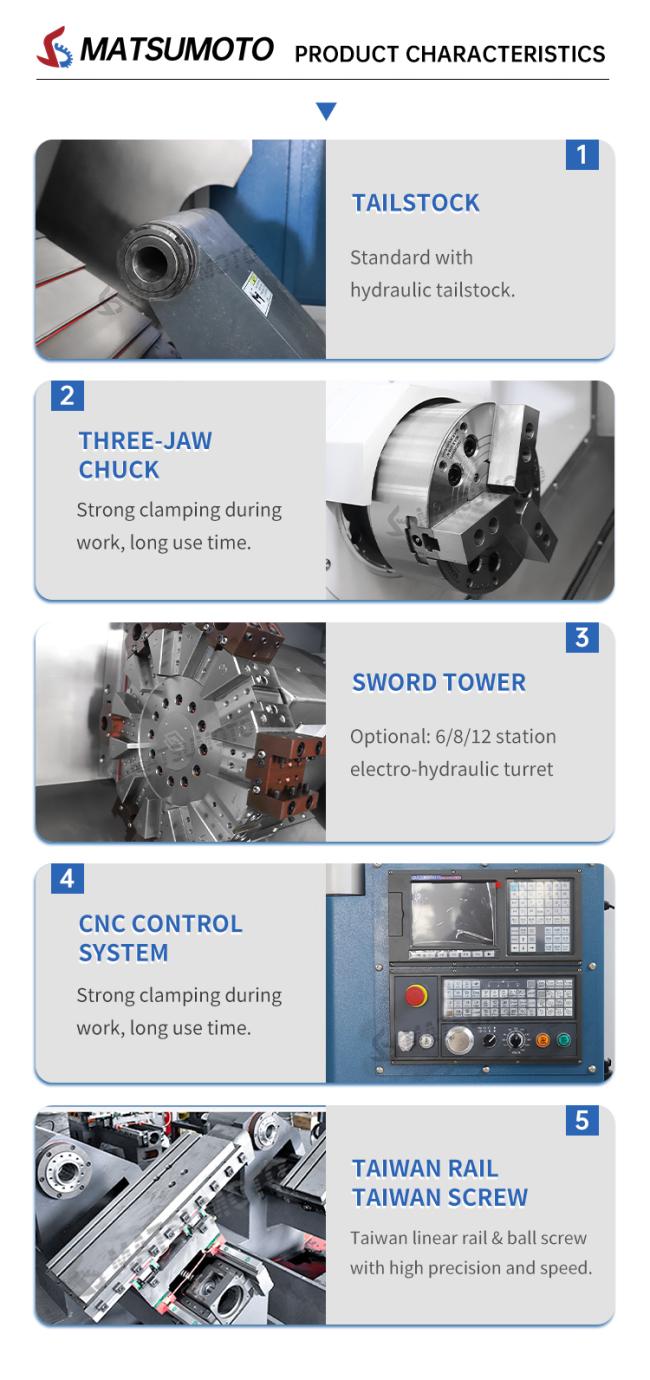

Equipped with high-speed high-rigidity spindle and high-response servo drive system, the machine realizes fast feed and smooth cutting. Standard servo turret ensures quick tool change and high processing efficiency. Humanized 45° inclined bed design makes chip removal smooth and daily maintenance convenient.
| Model | Units | TCK46 | |
| Processing capability | Maximum turning diameter | mm | 450 |
| Standard machining diameter | mm | 160 | |
| Maximum processing diameter | mm | 280 | |
| Maximum processing length | mm | 300 | |
| Spindle through-hole diameter | mm | 35/45 | |
| Displacements | X-axis displacements | mm | 180 |
| Z-axis displacements | mm | 300 | |
| Machine spindle | Speed | rpm | 0-4000 |
| Minimum division angle (Cs axis control) | deg | - | |
| Spindle nose type | - | A2-5 | |
| Through-hole diameter | mm | 35/45 | |
| Bearing inner diameter | mm | 85/90 | |
| Blade | Number of tool clamps | - | 8 |
| Height of rectangular handle | mm | 25 | |
| Boring bar handle diameter | mm | 32 | |
| Tailstock | Tailstock movement amount | mm | 140 |
| Diameter of tailstock sleeve | mm | 75 | |
| Taper of taper hole on Tailstock sleeve | - | MT5 | |
| Tailstock sleeve displacement | mm | 100 | |
| Feed rate | Rapid feed rate | m/min | X:300/Z:30 |
| Electric Motors | Spindle motor (30 minutes 60%/continuous) | Kw | 7.5/11 |
| Rotating tool motor (15 minutes/continuous) | kw | - | |
| Feed axis motor | Kw | X:1.5/Z:1.5 | |
| Hydraulic pump motor | kw | 1.5 | |
| Cutting fluid pump motor | kw | 0.4 | |
| Required power supply | Power Supply | kVA | 11 |
| Oil tank capacity | Used for hydraulic devices | L | 50 |
| Used for lubricating oil | L | 2 | |
| Used for cutting fluid | L | 60 | |
| Machine tool size | Machine height | mm | 1650 |
| The height from the ground to the center line of the spindle | mm | 980 | |
| Floor area (standard specification) x3 | mm*mm | 2000*1400 | |
| Machine weight | kg | 2300 | |
Usage:
Mainly used for turning, boring, drilling, grooving, threading and finishing processes. Widely applied in automotive parts, hydraulic accessories, plumbing hardware, medical components, instrumentation and general machinery manufacturing. Ideal for small and medium-sized rotational parts processing in batch workshop production.
