T6 Automatic CNC Drilling and Tapping Center with 20000rpm Spindle Speed 1.2s Tool Change Time and BT30 Spindle Taper
Price:
12800-15500
MOQ:
1
Delivery Time:
30 working days
Brand:
Matsumoto
Product Description

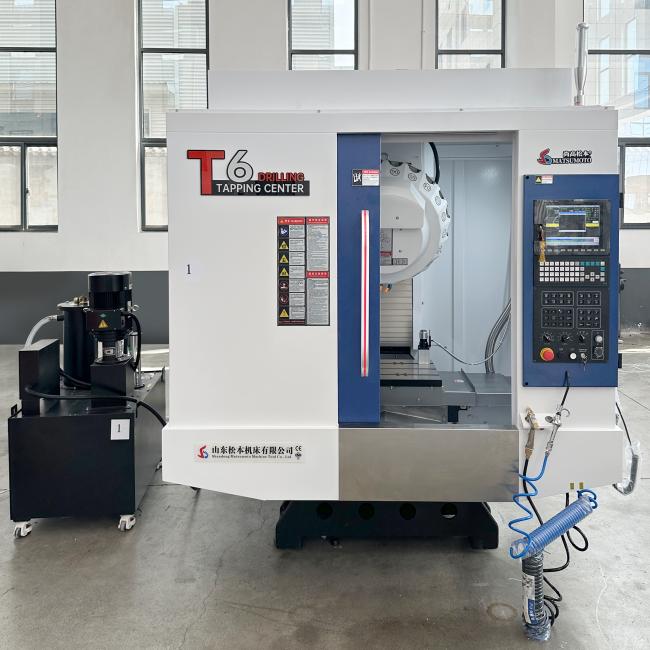

T6 Automatic CNC Drilling and Tapping Machining Center 3 Axis Vertical Cnc Machining Center
Description:
The T6 drilling tapping center is a high‑speed, high‑precision vertical CNC machine designed for drilling, tapping, and light milling, especially suited for mass production of small‑to‑medium parts in 3C, automotive, electronics, and precision hardware industries.
| Item | Unit | T6 |
| Table Size | mm | 700×420 |
| T-slot (Size×Pitch×Qty) | mm | 18×90×3 |
| Max. Table Load | kg | 300 |
| X-axis Travel | mm | 600 |
| Y-axis Travel | mm | 400 |
| Z-axis Travel | mm | 330 |
| Spindle Nose to Table | mm | 130–460 |
| Spindle Center to Column | mm | 450 |
| Spindle Taper | / | BT30 |
| Spindle Speed | rpm | 20000 (Direct Drive) |
| Cutting Feed Rate | m/min | 1–15 |
| Rapid Traverse Rate | m/min | 48 |
| Positioning Accuracy (JIS 6336-2) | mm | ±0.005 |
| Repeatability Accuracy | mm | ±0.005 |
| Spindle Servo Motor | / | D5.5 |
| Rated Power / Max. Power (30 min) | KW | 5.5 |
| Rated Torque | N.m | 22 |
| Tool Taper | / | BT30 |
| Max. Tool Diameter | mm | 80 |
| Max. Tool Length | mm | 200 |
| Max. Tool Weight | kg | 4 |
| Tool Change Time (T-T) | sec | 1.2 |
| Net Weight | kg | 2500 |
| Overall Dimensions (L×W×H) | mm | 1750×2150×2100 |
