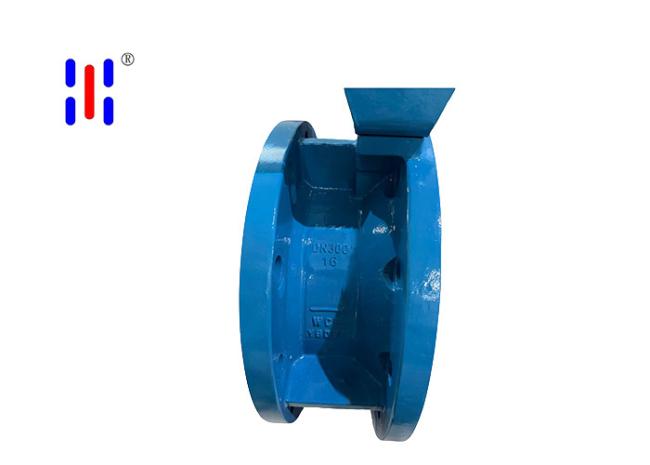

Flanged Double Eccentric Butterfly Valves PN16 Cast Steel wafer lug type
Flanged Hard Seal Double-Eccentric Butterfly Valve for WCB Cast Steel Body PN16
Product Features
The valve body and disc are made of WCB carbon steel, providing long-term strength at temperatures below 425°C at a controllable cost when used with non-corrosive media such as steam, flue gas, and industrial water. They do not corrode or soften. The PN16 pressure rating seamlessly covers the design pressures of industrial cooling water, general oil products, and gas pipeline networks, without material surcharges or price markups.
Product Advantages
●The double-offset design allows the disc to wedge into the seat along an eccentric path when closed. As medium pressure increases, the clamping force strengthens, enhancing seal reliability with rising pressure—without relying on elastic materials.
●The all-metal sealing pair withstands fire, meeting API 607 fire-resistance requirements. It will not melt or rupture during a fire, providing the final line of defense to protect the pipeline. The all-metal sealing pair withstands fire and meets API 607 fire-resistant requirements; it does not melt or rupture during a fire, providing the final line of defense to protect the pipeline.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
