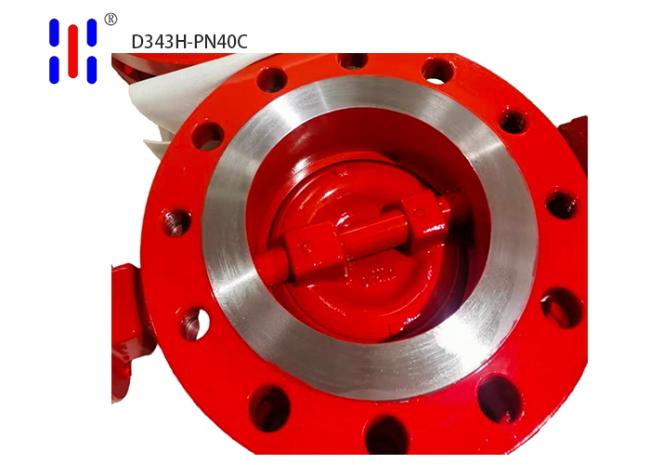

PN40 High Pressure Butterfly Valve EN1092 Chemical Plant Metal Seated Butterfly Valve
Triple Offset Butterfly Valve Flanged PN40 Carbon Steel for Chemical Plant
Product Features
Specifically designed for high-pressure, non-corrosive steam, oil, industrial water, and gas pipelines. Leveraging the exceptional high-strength pressure-bearing capacity of WCB carbon steel, these valves perfectly meet the PN40 high-pressure operating standards. Featuring an all-metal hard-seal design, they combine the ultimate strength of carbon steel with the temperature resistance of metal seals, providing a cost-effective and high-performance, leak-free, and reliable shut-off solution for high-pressure industrial pipelines.
Product Advantages
● The valve is forged to strict PN40 high-pressure standards, providing robust resistance to violent pulsations, water hammer impacts, and temperature fluctuations in high-pressure fluids. This ensures structural integrity without deformation during frequent operation and under extreme pressure differentials, maintaining a durable and consistent seal.
● Equipped with a worm gear gearbox, the operating torque of the handwheel is significantly amplified, allowing a single operator to open and close high-pressure, large-bore valves with minimal effort. The self-locking characteristic of the worm gear allows the disc to remain precisely at any opening position without the need for external braking.
● The valve features metal sealing faces combined with high-temperature-resistant, flexible, multi-layer graphite composites, offering both the rigid support of metal and the micro-compensating elasticity of graphite.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
