300 LB Double Eccentric Butterfly Valves For Liquefied Gas Pipelines

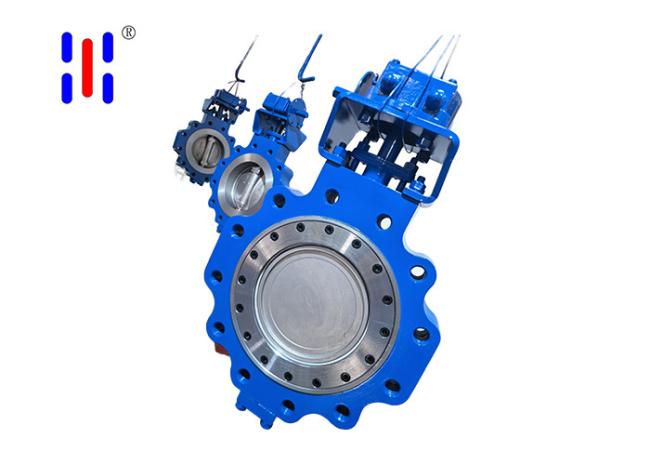

Lug Type WCB/316 Soft Seal Butterfly Valve for Liquefied Gas Pipelines 300 LB
Product Features
The valve body is made of WCB high-quality carbon steel castings, offering high mechanical strength, excellent toughness, strong pressure resistance, and exceptional versatility. The internal components are made of 316 stainless steel with added molybdenum, effectively resisting corrosion from chloride ions, weak acids and alkalis, and water vapor, as well as erosion from media flow; they are resistant to intergranular corrosion, and the flow surfaces are smooth with no dead corners, extending the service life of the valve internals. The combination of these two materials balances the high-pressure strength of the body with the corrosion resistance of the flow-passing components, avoiding the high costs associated with an all-stainless-steel design.
Product Advantages
●The lug-type structure features integrally cast threaded lugs on the valve body, ensuring easy installation and secure fastening. The soft seal provides strong elastic compensation, accommodating pipeline flange misalignment, thermal expansion and contraction, and minor component wear. The double-eccentric design offsets the valve stem axis from both the disc center and the body center. Upon opening, the disc’s sealing surface immediately lifts off the seat, significantly reducing wear throughout the entire operating cycle; low torque requirements ensure smooth and effortless operation.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
