Flanged Double Eccentric Butterfly Valve WCB 316 Body Hard Sealed For Industry
Flanged Double Eccentric Butterfly Valve WCB & 316 Body Hard-sealed for Industry
Product Features
The valve body is made of WCB carbon steel to ensure structural strength while keeping costs low, while the disc is constructed from 316 stainless steel containing 2% molybdenum to directly withstand the medium. In environments involving chlorinated cooling water, salt-fog-laden humid air, and outdoor coastal pipelines, its pitting resistance—far superior to that of 304 stainless steel—provides armor-like protection for the valve’s most corrosion-prone flow-through surfaces.
Product Advantages
● The double-offset design ensures effortless manual operation, while electric or pneumatic actuators can be selected one size smaller, reducing both electrical distribution and procurement costs. With a hardness rating of HRC 65, the valve effectively resists erosion from fine sand in water, steam-induced rust, and coke particles in oil products. The sealing surfaces maintain contact without wear, becoming smoother over time. Flange installation and removal are highly efficient; simply loosening the flanges at both ends allows the entire unit to be lifted out. Standby valves can be swapped in and put into service immediately, minimizing downtime to the shortest possible duration.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |

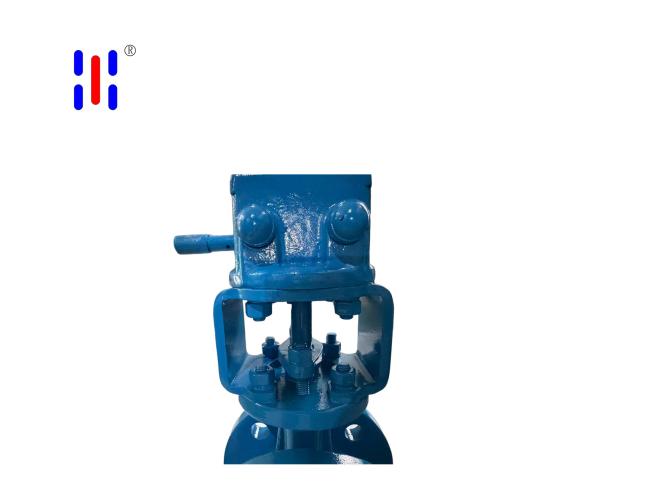

Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
