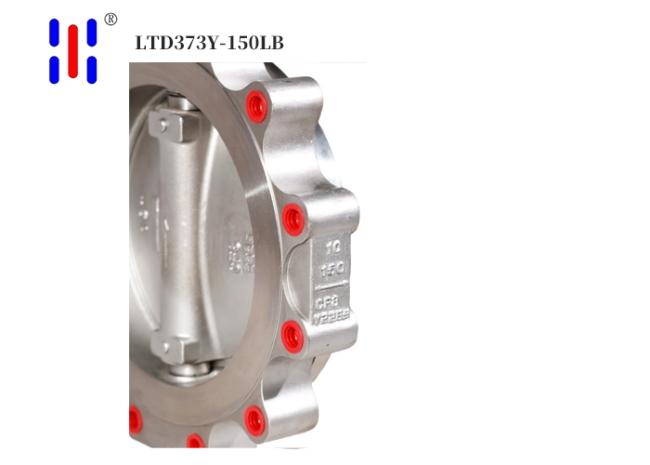

Lug-Type 150LB Stainless Steel Triple Offset Butterfly Valve for Water
Lug-Type 150LB Stainless Steel Triple Offset Butterfly Valve for Water
Product Features
The valve body, disc, and stem are all made of 304 stainless steel, so they won’t contaminate your clean water, process fluids, or steam like carbon steel valves do. Whether used in industrial water systems, food service piping, or pharmaceutical utility systems, the medium remains unchanged after passing through.
Product Advantages
● The self-locking effect of the conical geometry converts the force of the medium into sealing force. It achieves ANSI FCI 70-2 VI-level performance in both forward and reverse directions, ensuring no leakage regardless of the direction of pressure.
● The lug-type threaded holes use short bolts for fastening, eliminating the elastic elongation associated with through-bolts. Clamping force does not relax over time, resulting in inherently low risk of external leakage.
● The hard seal operates from cryogenic temperatures of -196°C to high temperatures of 540°C. Whether handling liquid oxygen or superheated steam, the sealing surface material does not undergo phase changes, softening, or plastic deformation.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
