904L DN100 Triple Butterfly Valve Pneumatic PN16 Flanged 316L For Chemical
Triple Offset Butterfly Valve DN100 PN16 Flanged 316L for Chemical
Product Features
All flow-through components, including the valve body and disc, are made of 316L ultra-low-carbon austenitic stainless steel. Thanks to the addition of molybdenum and the low-carbon design, the valve resists uniform corrosion from organic acids, inorganic acids, and dilute chloride solutions, while fundamentally eliminating the tendency for intergranular corrosion in the heat-affected zone of welds.
Product Advantages
● The DN100 nominal bore seamlessly matches standard piping, allowing for direct system integration without the need for reducers, ensuring smooth flow of the medium.
● Based on the three-dimensional eccentric principle, the disc disengages from the seat the moment the valve opens and only applies pressure when closing, ensuring friction-free and scratch-free operation throughout the entire cycle.
● The double-flanged installation provides excellent alignment, effectively absorbing pipeline stress. During maintenance and disassembly, the valve body sealing surfaces remain undamaged, enabling reliable integration with pipelines and rapid maintenance.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |

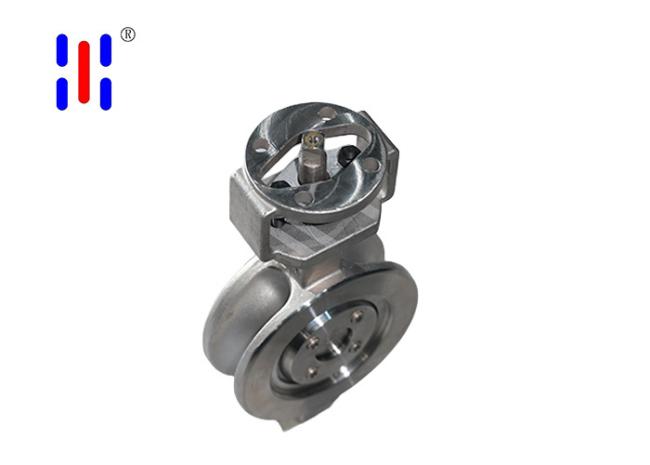

Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
