2in Metal To Metal Butterfly Valves LCB CF8 Stainless Steel Butterfly

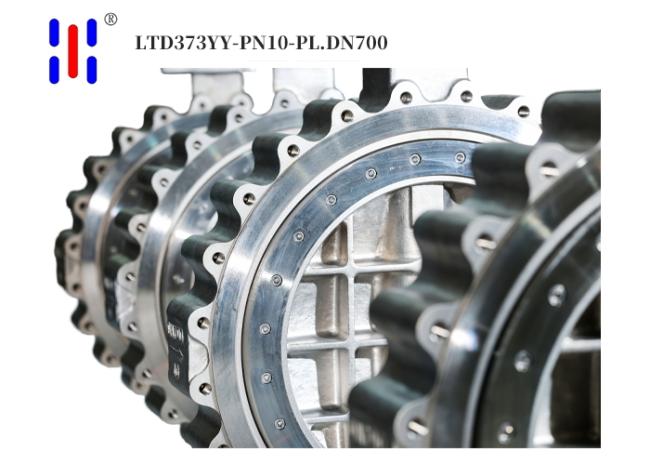

304L SS Lug Type DN700 PN10 Triple Offset Butterfly Valve for Water
Product Features
Designed for low-pressure, large-diameter clean and corrosion-resistant pipelines! The 304L ultra-low-carbon stainless steel ensures a pure, corrosion-resistant body, whilst the DN700 extra-large bore guarantees a robust flow rate, precisely matched to the PN10 pressure system. By combining a full-metal hard-seal with triple-eccentric frictionless technology, it achieves reliable, long-term control of high flow rates with zero ageing and zero leakage.
Product Advantages
● All flow-through components, including the valve body and disc, are manufactured from 304L ultra-low-carbon austenitic stainless steel. Whilst maintaining excellent resistance to oxidation and mild corrosion, the ultra-low-carbon design eliminates the tendency for intergranular corrosion in the heat-affected zone of welds at the chemical composition level, making it perfectly suited for on-site welding installation and long-distance pipeline splicing.
● The all-metal hard-on-hard seal withstands prolonged immersion, scouring by trace amounts of silt and sand, and thermal cycling, eliminating contamination from seal material leaching. The seal’s service life matches the entire lifecycle of the pipeline.
● The lug-type structure ensures zero damage to the valve body sealing surface during in-service disassembly and inspection. Maintenance does not require shutting down long sections of pipeline, significantly reducing downtime and maintenance costs.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
