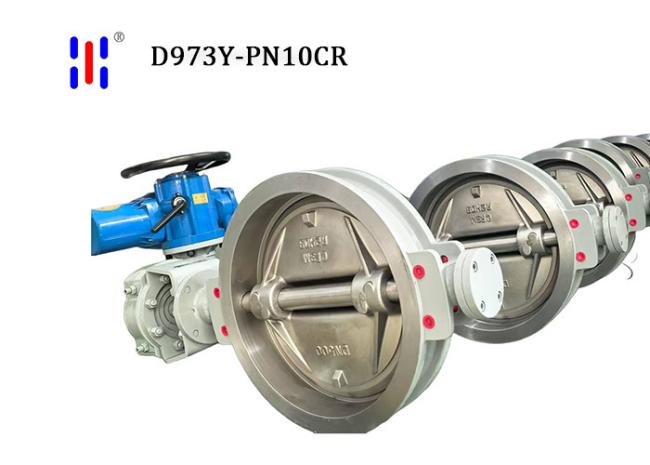

DN500 Wafer Electric Butterfly Valve Carbon Steel Electric Triple Offset Valve 2500LB
Triple Offset Butterfly Valve DN500 Wafer PN10 Carbon Steel Electric
Product Features
Provides an automated, unattended solution for low-pressure, large-diameter pipelines. Combining a robust WCB carbon steel body with a corrosion-resistant 316 stainless steel sealing gradient, a massive DN500 bore, and PN10 low-pressure rating, this valve integrates an electric actuator, a lightweight wafer-type design, and a triple-offset hard seal to deliver high flow rates, zero leakage, and a long service life through remote intelligent control.
Product Advantages
● Equipped with an electric actuator, it supports digital, analog, and bus control, seamlessly integrating with DCS/PLC systems to enable rapid remote shutoff and precise flow regulation.
● The valve body is made of WCB cast carbon steel, providing a high-rigidity pressure-bearing framework for the DN500 large diameter, effectively absorbing pipeline stress and pressure pulsations; the disc and sealing surfaces are made of 316 austenitic stainless steel, offering long-lasting corrosion protection in industrial water, steam, oil, and mildly corrosive media.
● Wafer-type connections require the least material and machining, resulting in procurement costs that are typically lower than those of lug-type and flanged connections, with particularly significant cost savings in large-diameter, low-pressure pipelines.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
