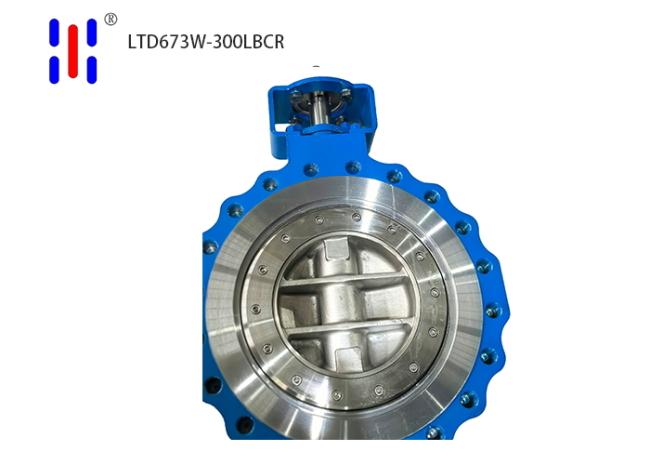

Triple Offset Butterfly Valve Pneumatic Wafer Lug 300LB Carbon Steel 316 Trim
Triple Offset Butterfly Valve Pneumatic Wafer Lug 300LB Carbon Steel 316 Trim
Product Features
Solves the challenges of slow shutoff, leakage, and short service life in medium- and low-pressure valve applications! The WCB+316 gradient material strikes a balance between cost and performance, while the Class 300LB rating ensures safe and reliable performance under medium- and low-pressure conditions. The pneumatic actuator enables millisecond-level emergency shutoff, isolating the hazard source immediately; the soft seal provides excellent sealing performance, and the triple-offset design ensures smooth, friction-free opening and closing, significantly reducing the risk of safety incidents and overall operational and maintenance costs.
Product Advantages
● The non-penetrating long bolts with a closed-lug connection maintain consistent clamping force over time. With bolts on both sides applying force independently, the risk of external leakage is inherently lower.
● Under pressure from the disc, the sealing ring compensates for microscopic irregularities, easily achieving ANSI Class VI bubble-tight shutoff. It effectively seals water, oil, and gas—a feat that hard seals cannot match at the same cost.
● Based on the principle of three-dimensional eccentric geometry, the disc disengages from the seat the moment it opens and presses against it precisely the moment it closes. Throughout the 90° rotation, the sealing surfaces experience zero friction and zero scraping.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
