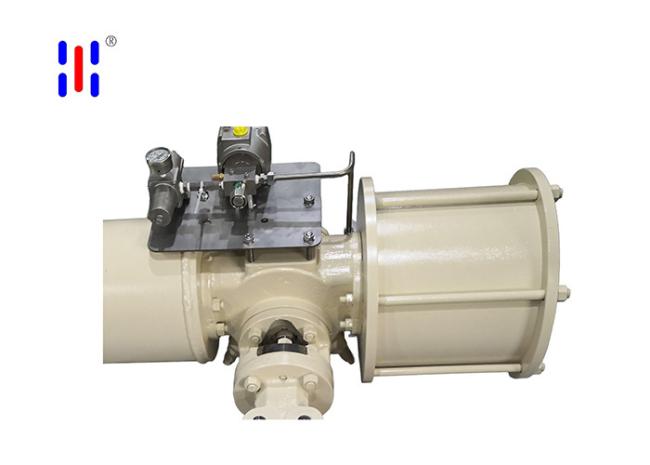

Pneumatic High Pressure Butterfly Valve 300LB CS Lug Wafer Butterfly Valve
Pneumatic Lug Type 300LB Carbon Steel 316 Trim Triple Offset Butterfly Valve
Product Features
Featuring WCB for high-pressure and high-temperature resistance, 316 stainless steel for chlorine resistance, and 300-lb medium-to-high-pressure leak-proof design—this product serves as a zero-leakage remote shut-off hub for medium-to-high-pressure pipelines containing chlorine or subject to mild corrosion that require ultra-fast shut-off. It combines the robust framework of carbon steel, the corrosion-resistant core of stainless steel, and millisecond response times from the pneumatic actuator.
Product Advantages
● The pneumatic actuator responds in milliseconds, taking less than one second from the issuance of a control signal to full valve opening or closing, making it perfectly suited for ESD emergency shutdown and rapid venting.
● The valve body is made of WCB cast carbon steel, combining high strength with thermal fatigue resistance to reliably absorb pipeline stress and pressure pulsations. The disc and sealing surfaces are constructed from 316 austenitic stainless steel, ensuring long-term corrosion resistance and seal integrity in steam, hot water, oil, and mildly corrosive chemical media.
● Based on a three-dimensional eccentric geometric design, operating torque is extremely low, significantly reducing the required pneumatic actuator size and air consumption.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
