6 Inch Butterfly Triple Offset Valve Butterfly Flange Valve For Desalination
6 Inch Lug Type 300LB 316 SS Triple Offset Butterfly Valve for Desalination
Product Features
One-piece construction from 316 stainless steel with 2–3% molybdenum content, offering 3–5 times the resistance to chloride ion corrosion compared to 304 stainless steel; Class 300LB nominal pressure, with stable operation across a wide temperature range of -196°C to 200°C; 6-inch standard diameter, a common size for industrial branch lines; Triple-eccentric soft-seal design ensures elastic contact with the sealing surface, enabling frictionless opening and closing with excellent zero-leakage performance.
Product Advantages
● The disc is precisely pressed against a high-performance elastic sealing ring, with outstanding resilience that compensates for pressure fluctuations and temperature variations. With no metal-to-metal friction, opening and closing torque is extremely low; the sealing surface experiences zero scraping wear, eliminating cross-contamination of media and significantly extending the service life of the sealing ring.
● The first and second eccentricities allow the disc to disengage from the seat immediately upon opening, while the third eccentric conical seal generates only the final wedging force. This significantly reduces scraping of the seal ring, resulting in a service life several times longer than that of traditional center-line butterfly valves.
● Can be configured with a handle or gearbox for direct drive, requiring no power or air supply, making it suitable for any remote or explosion-proof site.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |

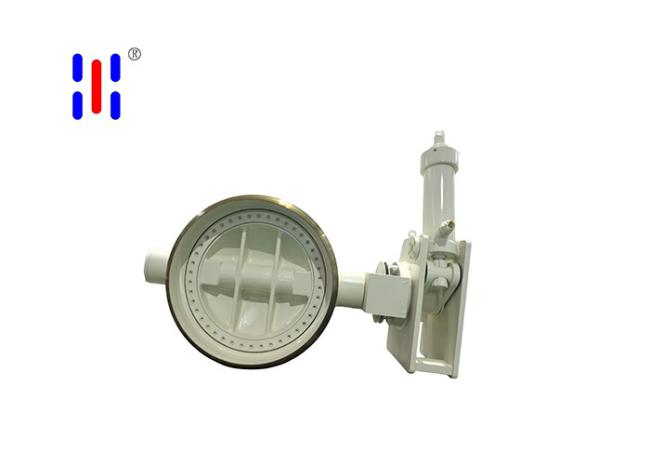

Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
