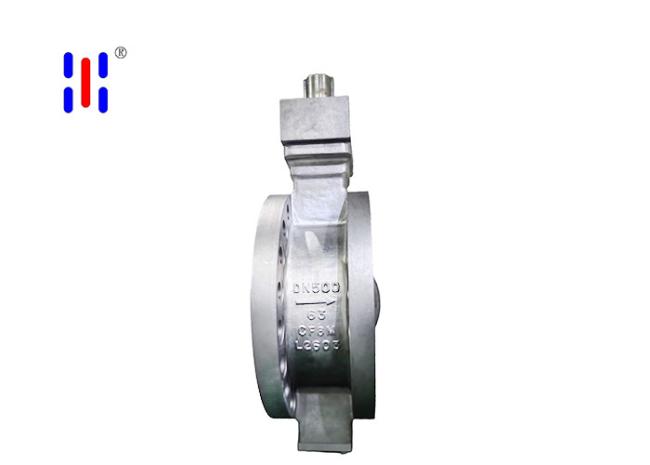

DN500 Metal To Metal Butterfly Valves PN63 Flanged SS316 Metal Seated Triple Eccentric
DN500 PN63 Flanged 316 SS Metal Seated Triple Offset Butterfly Valve Oil Gas
Product Features
Specifically designed for medium- to high-pressure, chlorine-containing, and highly corrosive medium- to large-diameter pipelines. Constructed from a single piece of 316 stainless steel, it offers chlorine resistance, rust prevention, and heat resistance; the DN500 medium- to large-diameter design ensures smooth, high-flow passage; and the PN63 high-pressure rating guarantees stability and reliability. Leveraging the rust-resistant and heat-resistant properties of pure 316 stainless steel and the long-lasting durability of all-metal hard seals, this valve supports customization with various drive types—including electric, hydraulic, and pneumatic—providing flexible and reliable zero-leakage shut-off solutions for industrial pipelines.
Product Advantages
● The valve stem is supplied as a bare stem without a fixed actuator. Users can independently select handles, worm gearboxes, or electric/pneumatic actuators based on on-site requirements, avoiding redundant investment.
● The sealing pair features a precision-matched 316 stainless steel and hard alloy design, achieving opening and closing through rigid all-metal engagement—absolutely free of graphite, rubber, and PTFE. This completely eliminates risks associated with cold flow, thermal creep, and high-temperature aging, ensuring bidirectional zero leakage from vacuum to full rated pressure differential.
● A multi-bolt flange ring forms a closed load-bearing structure, evenly distributing the thermal expansion thrust, water hammer bending moments, and self-weight of the pipeline, ensuring the valve seat sealing surface remains flat and free from warping over the long term.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |
Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
