20in Wafer Double Eccentric Butterfly Valves 150LB Sanitary Mirror Polished 304 Offset Flanged
20 Inch Wafer 150LB Sanitary Mirror Polished 304 Double Offset Butterfly Valve
Product Features
304 mirror-polished finish, full-range PTFE corrosion resistance, and precise 150 psi pressure rating—designed for sanitary piping systems in the food, pharmaceutical, and biotechnology industries. Combining mirror-grade stainless steel finish with the chemical inertness of PTFE, it establishes a leak-free, sterile barrier that can be easily shut off and leaves no dead corners.
Product Advantages
● The internal cavity and flow surfaces are precision-polished to Ra ≤ 0.8 μm, resulting in a mirror-smooth finish that prevents media from adhering to the walls and inhibits bacterial growth, ensuring first-pass validation for cleaning. Fully compatible with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes, it resists dirt accumulation and scaling even after repeated rinsing and high-temperature steam purging.
● The valve body is directly clamped between pipe flanges and secured by through bolts, featuring a flangeless design that is lightweight and space-saving. Installation and removal are quick, allowing for in-line maintenance without the need to shut down the pipeline.
● Based on a double-eccentric geometric design, the valve stem axis is offset from both the center of the sealing surface and the center of the pipeline. The disc lifts off the seat the moment it opens, significantly reducing friction and wear on the sealing surfaces.
Design Standards
|
Technique request |
Standard |
|
Design Standard |
API 609, ASMEB16.5,EN593,GB/T12238,JB/T8527 |
|
Face to Face Standard |
ASME B16.10 |
|
Connection standard |
ASME B 16.5,ASME B 16.47,GOST33259,EN1092-1,HG/T20592,JIS B2220,GB/T9113,GB/T9124.1 |
|
Test & Inspect Standard |
API 598,EN 12266,GB/T13927 |
|
Nominal Dimension |
2”- 100” |
|
Connection type |
BW, RF, RTJ. FF |
|
Fungtive Emission Testing |
ISO 15848 |

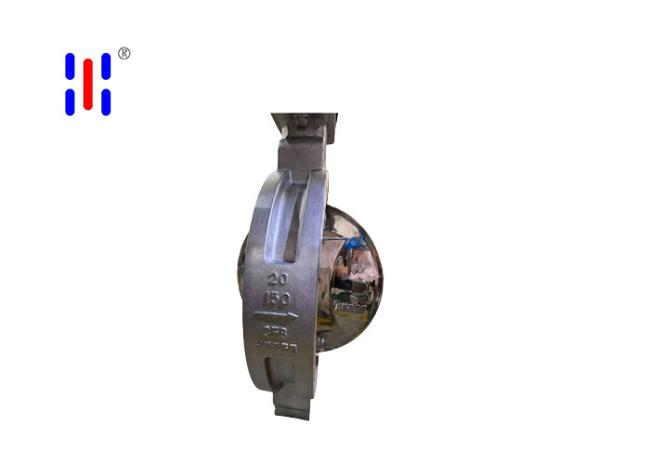

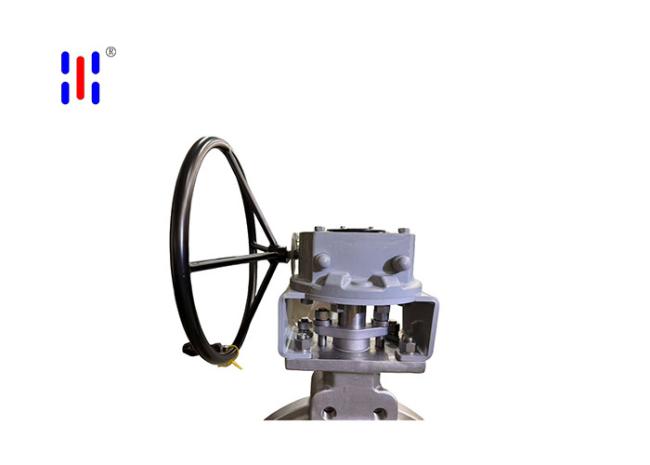

Product detail
Application
Chemical and Petrochemical Industries,Power Generation, Water Treatment and Environmental Protection,Metallurgy and Shipbuilding.
About Us
Zhejiang Yugong Fluid Technology Co., Ltd. is a comprehensive high-tech enterprise integrating production and sales. The company manufactures and operates professional butterfly valves made of stainless steel, carbon steel, titanium and other materials. Founded in 2012, the company is located in Yongjiao Oubei, the "hometown of pumps and valves in China", covering an area of 4,000 square meters and has more than 80 employees. Aiming high and forging ahead, the company looks forward to working hand in hand with new partners and walking all the way!
Our Workshop
|
|
|
|
|
|
|
|
|
F&Q
| Q: Are you trading company or manufacturer ? |
| A: We are a factory. |
| Q: How long is your delivery time? |
| A: According to the order,10~60days. |
| Q: Do you provide samples ? Is it free or extra ? |
| A: Yes, we could offer the sample for free charge but do not pay the cost of freight. |
| Q: What is your terms of payment ? |
| A: 30% T/T in advance ,balance before shippment. |
Customer Service
- Before signing an official contract with our customer we will help to analyze and provide professional solution based on customer project information and come out with optimum solution.
- Your inquiry related to our products or price will be replied in 24hrs.
- Keep informing our customer production process and help arrange quality checking in the factory if necessary.
- one-year warranty toproducts.
