GD008
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
yeearm
Product Description

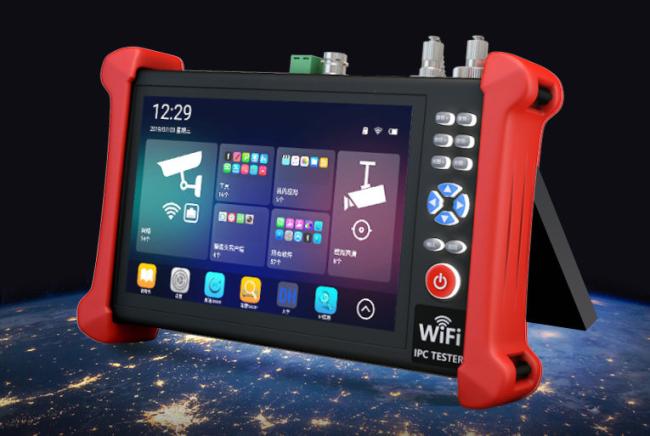

7-Inch Dual Gigabit Ethernet 6K H.265 Main Stream Coaxial HD TDR3.0 Digital Tracer CCTV Tester
Feature:
● 12MP 6K H.265 hardware decoding IP camera main stream real-time display, compatible with ONVIF and mainstream private protocols
● Batch IP camera tools: batch activation, batch IP/channel name/password modification, fast ONVIF tool.
● Analog/HD‑CCTV test: auto‑detects TVI/CVI/AHD (up to 8MP) and CVBS signals, UTC menu control and PTZ.
● Network cable TDR quality test: measures length, attenuation, return loss, impedance up to 200m, detects open/short and pair status.
● Digital anti‑burn wire tracing: 60V withstand voltage, supports PoE live tracing, noiseless
● TDR 3.0: tests breakpoints and length of network cables, coaxial cables, telephone lines, RVVP, etc., up to 1500m.
● Multiple power outputs: standard PoE (48V), two‑way DC12V/3A, DC24V/2A, DC5V/2A – temporarily powers cameras, switches, etc.
● HDMI input & output,Optical power meter & red light source,Digital multimeter,Dual Gigabit Ethernet ports,Advanced network tools: Ping test, IP scan, port flashing, etc.

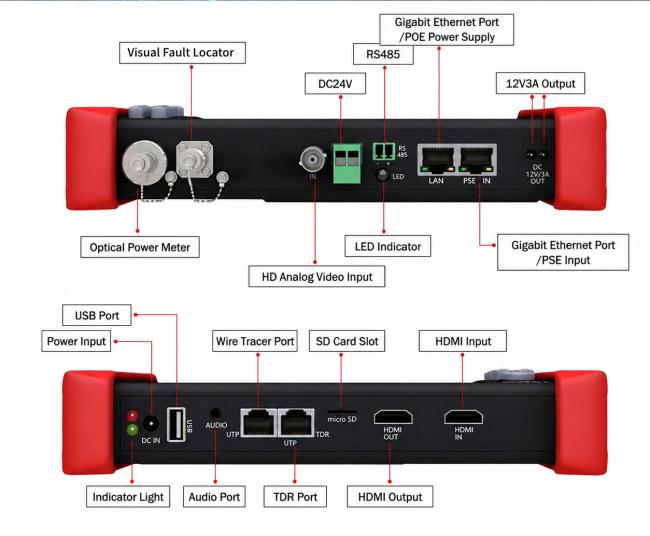

interface:
- OPM
- RS485 Interface
- UTP Wire Tracer
- Analog Input
- DC IN
- VFL Red Light Source
- Audio
- Gigabit Ethernet PoE Output
- Dual DC12V/3A Output
- DC 24V
- USB
- TDR Test Port
- micro SD Card
- Gigabit Ethernet PSE Input
- HDMI IN and OUT
Product Attributes
Brand
YEEARM
Origin
Own factory is located in Guangzhou, Guangdong Province, China
MOQ
1
Technical Specifications
| Parameter | Details |
|---|---|
| Display Screen | 7-inch IPS HD full-view touch screen, resolution 1920×1200 |
| Dual Gigabit Ethernet Ports | Two Gigabit Ethernet ports, 10/100/1000M auto-adaptive |
| High-Capacity Battery | Built-in integrated high-capacity 7800mAh battery + smart fast charging |
| Enhanced Wi-Fi | Built-in wireless Wi-Fi, 150Mbps speed, supports wireless IP camera testing and wireless connection |
| H.265 Main Stream Testing | Hardware decoding, max resolution 4K/6K, supports testing of 12MP cameras |
| IP Camera Testing | Full smart one-key test, auto IP search, auto login, instant image display |
| Ethernet Testing | 10/100/1000M Ethernet link status test, Ethernet traffic detection |
| Full Auto IP Scan | Automatically search all IP addresses of cameras in the network segment, auto-jump to video playback, time-saving and labor-saving |
| Auto IP Segment Matching | The tester's IP automatically matches the camera's network segment |
| Fast ONVIF Tool | Auto login, play image, supports modifying IP address/channel name, generating test reports, etc. |
| Major Brand Testing Tools | Batch activation and batch IP modification for major surveillance brands, custom channel name modification, username/password modification, etc. Customization available for other brands |
| Advanced Link Monitoring | Supports Ethernet statistics, loopback, network loop testing, etc. |
| Advanced Network Tools (Pro Edition) | Ping test, IP scan, port blink, PPPoE dial test, DHCP, MAC address query, socket debugging, DNS optimization, port scan, etc. |
| Lens Simulation | Simulates display area for 2.8/3.6/4/6/8/12/16/25mm lenses |
| Digital Anti-Burn Cable Tracing | Supports cable tracing and sequence testing; supports PoE live cable tracing with anti-burn withstand voltage up to 60V; digital signal tracing, noise-free and anti-interference. After tracing, connect the cable to the TDR port to directly display the wiring sequence (straight-through/crossover) and check cable availability |
| HDMI Input | Can be used directly as a monitor to test recorders and other devices |
| Coaxial HD Test 4.0 | TVI/CVI/AHD supports up to 8MP resolution with adjustable OSD menu |
| Digital Multimeter | Measures DC voltage, DC current, AC current, AC voltage, resistance, capacitance, continuity buzzer, and diodes. With built-in isolation protection and one-click test report generation |
| Optical Power Meter | Supports multiple wavelengths, tests fiber attenuation/loss and continuity |
| Visual Fault Locator (VFL) | Detects fiber optic line faults such as breaks, cracks, and bends |
| Advanced TDR Breakpoint Test | Tests network cables, coaxial cables, telephone lines, RVVP lines, AVVR lines, etc. Intuitively displays the length of each core, supports calibration, measurement range 3–1500 meters |
| Focus Information Testing | Camera focus information, transmission signal quality, image quality testing |
| Camera Power Supply | Standard PoE 48V, DC12V 3A (2 channels), DC24V 2A, DC5V/2A output |
| Network Cable TDR Test | Tests cable pair status, length, attenuation, reflectivity, impedance, delay skew, etc. |
| UTP Cable Test | Tests cable sequence and continuity, checks cable availability |
| HDMI Output | 1-channel HDMI output, supports 1920×1080P |
| Analog Video Test | 1-channel BNC input, supports PAL/NTSC format |
| Video Image Zoom | Supports video zoom, zoom and pan of IP camera images |
| Image Management | Supports video zoom, camera photo capture, video recording, PTZ control, etc. |
| PoE/PSE Voltage Test | Displays power supply voltage and cable connection status |
| Audio Testing | 1-channel input, tests audio functionality and supports recording |
| Built-in Serial Tool | Receives RS485 protocol code data and sends hexadecimal codes |
| New Feature: Enhanced Wi-Fi Analysis | Analyzes nearby Wi-Fi signal strength and channel stability, checks encryption method, speed, MAC address, NIC manufacturer info, and generates printable reports |
| New Feature: Smart Screen Share | No software installation required; allows customers to view camera status intuitively during high-altitude work |
| New Feature: Smart AI IPC One-Key Test | Integrates camera testing steps (power supply, IP detection, video viewing, activation, link status) into one function, completing camera testing with one click |
| New Feature: Security Tools | Helps calculate recording capacity, camera focal length, bandwidth, etc. |
| New Feature: Virtual Network Monitoring | Virtualizes the tester as an IP camera to analyze NVR and cable issues |
| New Feature: RJ45 Connector Fault Location | Visually displays which core of the RJ45 connector is faulty on either the main unit or the remote tester |
