YN-892 Rechargeable Digital Noise-Free 60V Live Wire Tracer with Direct Cable Mapping & Length Detection Tester
Rechargeable Digital Noise-Free 60V Live Wire Tracer
Feature:
● 130kHz digital pulse signal – noise‑free, anti‑interference tracing for network cables, telephone lines, coax, power cables, etc.
● 60V anti‑burn live tracing – works on PoE switches without powering down.
● Both main and remote units have 1800mAh rechargeable Li‑ion batteries (MicroUSB charging); 20+ hours continuous use, with power‑on battery level display.
● Auto‑switch to wiremap mode after tracing – directly shows 1‑to‑8 core pinout and continuity.
● PoE wiring sequence detection, identifies standard/non‑standard switches.
● Additional features: LED flashlight, headphone monitoring.
● Slot‑in docking design between main unit and receiver, includes carry pouch; compact and portable.
● Multiple power outputs: PoE (48V) + voltage measure, DC12V/2A, DC5V/2A.
● Full cable tests: TDR (length, attenuation, return loss, impedance, open/short); wiremap; optional 60V anti‑burn digital tracing (live PoE support).

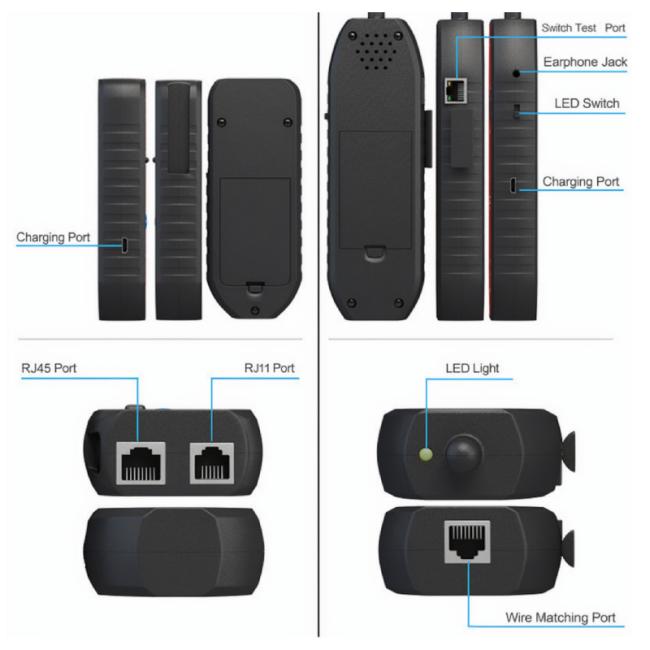

interface:
- RJ45
- RJ11
- TYPEC Charging
- Switch Test
- Wire Matching
- LED Switch
- Earphone Jack
Product Attributes
Technical Specifications
| Parameter | Details |
|---|---|
| Battery Specifications | 3.7V 1800mAh Rechargeable Lithium Battery |
| Charging Voltage / Port | Charging Voltage DC5V, Current 2A, Charging Port USB Micro |
| Cable Signal Transmission Distance | Signal Transmission Distance Up to 3000 Meters |
| Host Cable Port Withstand Voltage | Supports Up to DC 60V POE Switch |
| Signal | 130Khz Pulse |
| Operating Current | Host: Standby 45mA Operating 100mA
|
| Cable Testing | Any cable testing, wire sequence alignment |

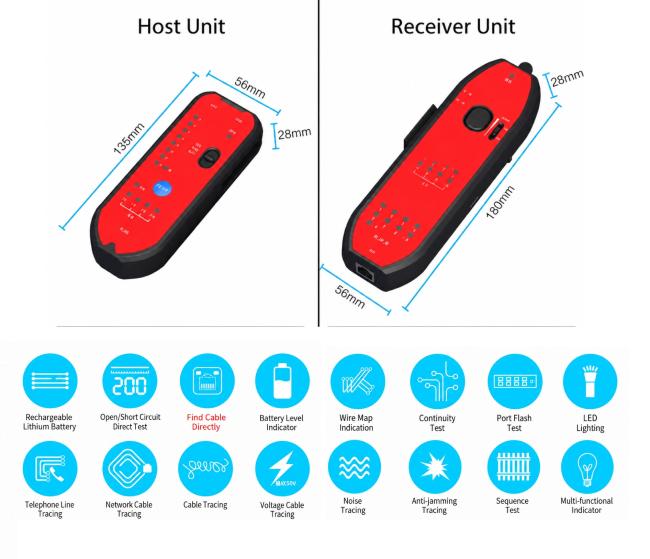

| Weight | Host: 100g
|
| Operating Time | Host: Can be used continuously for 20~25 hours
|
| Operating Humidity | 30%--90% |
| Operating Temperature | -10℃~+50℃ |
