YN-810
3.5-Inch PTZ Control, Cable Testing, DC12V Output Coaxial HD Analog Tester
Feature:
● Supports CVBS, AHD, CVI, and TVI video signal input with clear and smooth image; allows photo capture, video recording, playback, zoom, and coaxial menu control.

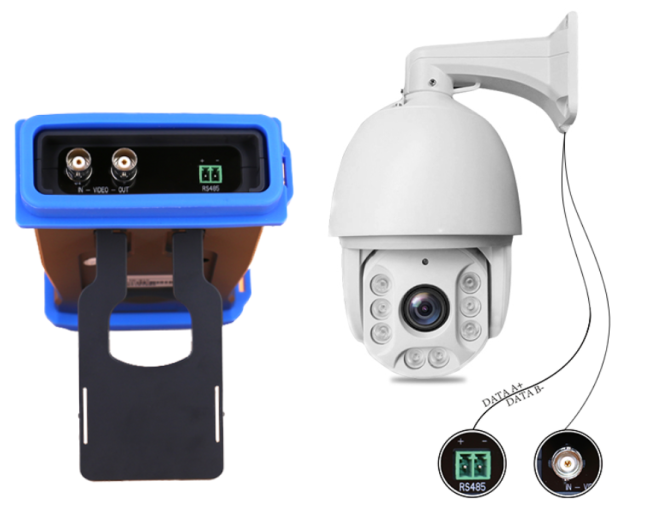

● Built-in PTZ protocols (PELCO-D, PELCO-P, etc.) and RS485 interface for pan, tilt, zoom, focus, iris, preset management, and dome menu access.
● IP address scanning function quickly finds the communication address of PTZ cameras.
● Provides DC12V/2A output
● Network cable sequence testing displays wiring order and continuity for fast fault diagnosis.
● Color bar generator outputs color patterns to verify video channel transmission.
● Compact and portable design: 3.5-inch LCD (960×240 resolution), 2000mAh battery, dimensions 105×44×188mm, includes carrying pouch and test accessories.

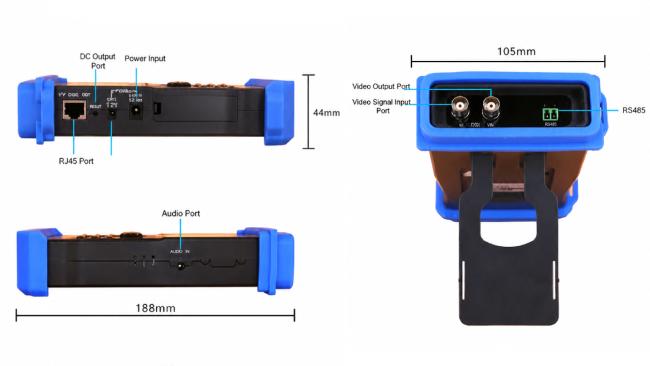

interface:
- RJ45
- RS485 Interface
- DC Output
- HD Analog Input and Output
- Power Input
- Audio
Product Attributes
Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | YN-810 |
| Video Standard | PAL / NTSC auto-adaptive |
| Video Display | 3.5-inch digital LCD color screen, resolution 960×240 |
| Video Input | CVBS, AHD, TVI, CVI video signal input test |
| Communication Interface | Supports RS485 bus |
| Communication Protocol | Compatible with multiple control protocols including PELCO-D/P; custom protocols available |
| Data Test | RS485 data analysis function, displays communication content in hexadecimal on screen |
| Power Output | 12V 2A output, provides temporary power for surveillance cameras |
| Audio Test | Tests audio signal functionality of surveillance camera pickups |
| Network Cable Test | Tests network cables of any sequence, displays connection order on screen |
| External Power Supply | DC12V/2A, charging time: 1.5–2 hours |
| Battery Power Supply | 2000mAh |
| Color Bar Generator | 7 selectable standards: PAL-BDJHI, PAL-N, PAL-CN, NTSC-M601, NTSC-M170, NTSC-J, NTSC-M |
| Operating Environment | Temperature: -10℃ to +50℃, Humidity: 30% to 90% |
| Dimensions | 105×44×188mm |
