IPC3600
6K H.265 Main Stream, Coaxial HD 8MP, Cable TDR Quality Test IPC Tester
Feature:

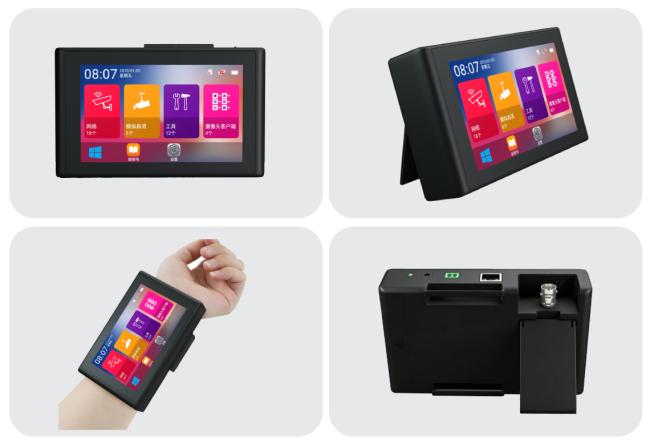

● 4" IPS touchscreen (800×480), 137×83×35mm, 0.25kg, wrist strap for one‑hand operation.
● 6K (12MP) H.265/H.265+/H.264/MPEG4/MJPEG decoding, IP camera main stream live view.
● Full‑segment IP blind scan, one‑click video. ONVIF & mainstream private protocols
● IP camera tools: batch activation, batch IP change, channel/password modify, fast ONVIF, OSD channel name change.
● Analog/HD‑CCTV: auto detects TVI/CVI/AHD (up to 8MP) & CVBS, image zoom/snapshot/record.
● Gigabit Ethernet port (10/100/1000M). TDR cable test: measures length (2‑200m), attenuation, return loss, impedance, detects open/short.
● Optional tools: IP blind scan, virtual IPC diagnosis, IP conflict scan, Ping, DHCP, port flash, PPPoE, advanced link test.
● Android OS with 800+ optimizations, supports 3rd‑party apps & online upgrade,Enhanced WiFi analysis,etc
interface:
- RS485 Interface
- TF Card Slot
- LED light
- Gigabit Ethernet Output
- 12V 2A Output
- CVBS input interface
- USB
Product Attributes
Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | IPC 3600 |
| Operation | Capacitive Touch |
| Touch Screen | 4-inch G+G structure capacitive touch screen |
| LCD Screen | 4-inch IPS HD full-view screen, resolution 800×480 |
| Ethernet Port | 10/10/1000M auto-adaptive |
| Wi-Fi | Built-in wireless Wi-Fi, max speed 150Mbps |
| IP Camera Testing | ONVIF tool supports mobile client installation, up to 4K resolution, real-time image viewing without delay |
| CVBS Analog Camera Testing | 1-channel CVBS analog input, supports PAL/NTSC format auto-adaptive |
| Video Image Zoom | Real-time zoom and pan of HD video images, max magnification: 8x |
| Capture, Record & Playback | Supports screenshot capture, video recording and playback for all video sources; supports H.265 encoding storage |
| PTZ Control | Supports over 40 protocols |
| DC 12V Power Output | 12V DC output, max current 1A, provides temporary power for cameras |
| RS485 Serial Tool | Receives and sends arbitrary data, analyzes PTZ protocols |
| Charger | 5V/2A |
| Battery | Built-in 3.7V polymer lithium battery, capacity 3000mAh |
| Language | Supports over 10 languages including Simplified Chinese, Traditional Chinese, English, Russian, etc. |
| Internal SD Storage | 8GB |
| Operating Temperature | -10℃~+50℃ |
| Operating Humidity | 30%~90% |
| Dimensions | 137mm×83mm×35mm (Note: The original "X3.5mm" is a typo, corrected to 35mm according to industry standards) |
| Weight | 0.25kg |
