IPC9300
4K H.265 Main Stream Test, 12V3A Power Supply, Full Net Segment Blind Probe, Coaxial Analog IPC Tester
Feature:
● 4K H.265 hardware decoding: supports H.265/H.265+/H.264/MPEG/MJPEG, up to 4K main stream playback for IP cameras.
● Blind scanning for full IP segment: automatically searches all IP addresses, matches the tester’s IP, and displays video with one click.
● 100+ brands custom tools: .Enables batch activation, batch IP modification, factory reset, browser access, and free private protocol customization.
● ONVIF fast test: quickly scans cameras, auto‑logs in for instant image, remembers last correct username/password, supports main/sub stream switching.
● Analog camera test: 1x CVBS input, auto‑adapts to PAL/NTSC, supports image display, zoom, snapshot, video recording, playback, and provides DC12V/3A power for analog cameras.
● 4-inch IPS HD touchscreen and 3200mAh long‑life battery (Li‑polymer),6–8 hours of normal use

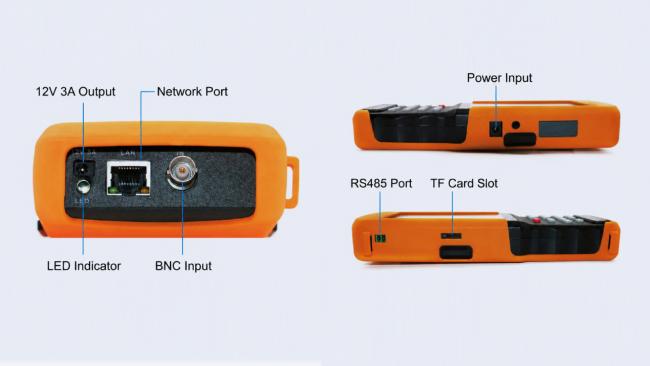

interface:
- Power Input
- RS485 Interface
- BNC Input
- LED
- Gigabit Ethernet LAN Output
- DC12V/3A Output
- TF Card Slot
- Cable Tracing Interface
Product Attributes
Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | IPC9300 HD Video Surveillance Tester |
| Touch Screen | 4-inch Capacitive Touch Screen |
| LCD Screen | 4-inch IPS HD Full-View Screen, Resolution 800×480 |
| Ethernet Port | 10/100/1000M Auto-adaptive |
| Wi-Fi | Built-in Wireless Wi-Fi, Speed 150Mbps |
| H.265 Main Stream Testing | Supports H.265 main stream playback of camera images, up to 4K resolution |
| IP Camera Testing | ONVIF (with PTZ control), customized professional IPC tools for major brands, private protocol image playback, supports almost all camera brands on the market |
| CVBS Analog Camera Testing | 1-channel CVBS analog input, supports PAL/NTSC format auto-adaptive |
| Lens Simulation | Simulates display area for "2.8/3.6/4/6/8/12/16/25mm" lenses |
| Focus Information Testing | Camera focus information, image quality detection |
| IP Detection | Full network segment IP detection for camera IP addresses |
| Hikvision SADP Tool | Batch activation and batch IP modification for Hikvision cameras; supports username and password modification |
| Dahua Testing Tool | Batch activation, batch IP modification, cross-segment IP modification, username and password modification for Dahua cameras |
| Capture, Record & Playback | Supports screenshot capture, video recording and playback for all video images; supports H.264 encoding storage |
| PTZ Control | Supports over 30 protocols |
| DC 12V Power Output | 12V DC output, max current 3A, provides temporary power for cameras |
| RS485 Serial Tool | Receives and sends arbitrary data or hexadecimal data |
| Charger | DC 12V/2A, full charge in 3-4 hours |
| Battery | Built-in 7.4V polymer lithium battery, capacity 3200mAh, working time 6-8 hours |
| Language | Supports over 10 languages including Simplified Chinese, Traditional Chinese, English, Russian, etc. |
| Internal SD Storage | 8GB |
| Operating Temperature | -10℃~+50℃ |
| Operating Humidity | 30%~90% |
| Dimensions | 230mm×103mm×38mm |
| Weight | 0.5kg |
