5W / MK Silicone Rubber Pad 0.5mmT 45 SHORE00 For Rainproof LED Power
5W / MK Silicone Rubber Pad TIF520-50-11S,0.5mmT,45 SHORE00 for Rainproof LED Power

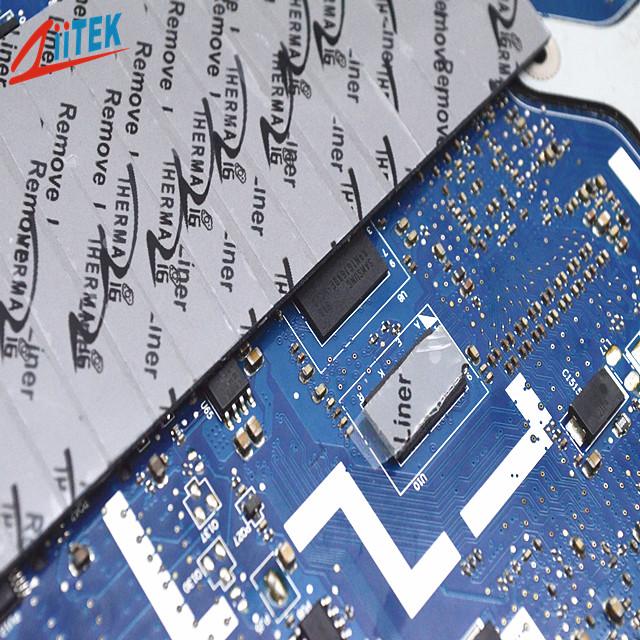

The TIF520-50-11US is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling
TIF500-50-11S Datasheet-REV02.pdf
Features:
> Good thermal conductive: 5.0W/mK
>Thickness:0.5mmT
>Moldability for complex parts
>UL recognized
>Broad range of hardnesses available
>High durability
Applications:
>Rainproof LED Power
>Waterproof LED Power
>Automotive electronics
>Set top boxes
>LED TV and LED-lit lamps
>RDRAM memory modules
|
Typical Properties of TIF520-50-11S
|
||||
| Color |
Grey |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
| Construction & Compostion |
Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.21 |
| 20mils / 0.508 mm | 0.27 | |||
| Specific Gravity | 3.15 g /cc | ASTM D297 |
30mils / 0.762 mm |
0.39 |
|
40mils / 1.016 mm |
0.43 | |||
| Thichness | 0.5mmT | *** |
50mils / 1.270 mm |
0.50 |
|
60mils / 1.524 mm |
0.58 |
|||
| Hardness | 45 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
0.65 |
|
80mils / 2.032 mm |
0.76 | |||
| Tensile Strength |
55 ps |
ASTM D412 |
90mils / 2.286 mm |
0.85 |
|
100mils / 2.540 mm |
0.94 | |||
| Continuos Use Temp | -40 to 160℃ |
*** |
110mils / 2.794 mm |
1.00 |
|
120mils / 3.048 mm |
1.07 | |||
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
130mils / 3.302mm |
1.16 |
|
140mils / 3.556 mm |
1.25 | |||
| Dielectric Constant | 4.0 MHz | ASTM D150 |
150mils / 3.810 mm |
1.31 |
|
160mils / 4.064 mm |
1.38 | |||
| Volume Resistivity | 4.0X1012 Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.43 |
|
180mils / 4.572 mm |
1.50 | |||
| Fire rating | 94 V0 |
equivalent UL |
190mils / 4.826 mm |
1.60 |
|
200mils / 5.080 mm |
1.72 | |||
| Thermal conductivity | 5.0 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
FACTORY INFORMATION:
Factory Size
5,000-10,000 square meters
Factory Country/Region
Building B8, Industry District Ⅱ, Xicheng, Hengli Township, Dongguan City, Guangdong Province, P.R.China
Annual Output Value
US$1 Million - US$2.5 Million
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
