Ultra Soft Thermal Gap Pad 4w/MK Fire Rating UL 94-V0 For Telecommunication Hardware

ultra soft thermal gap pad 4w/mK, Fire rating:UL 94-V0 for Telecommunication hardware

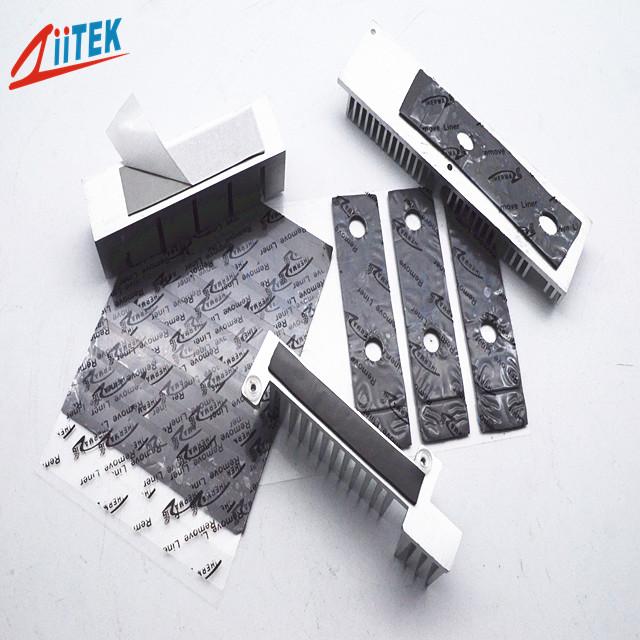

  The TIF5180-40-11US is a highly compliant Gap Pad material that is ideal for fragile component leads. The material is fiberglass reinforced for improved puncture resistance and handling TIF5180-40-11US maintains a conformable, yet elastic nature that provides excellent interfacing and wet-out characteristics, even to surfaces with high roughness or uneven topography. TIF5180-40-11US features an inherent tack on both sides of the material, eliminating the need for thermally impeding adhesive layers.Options and ConfigurationsStandard sheet size - 8" x 16" or custom configurationStandard thickness available - 0.020", 0.040", 0.060", 0.080", 0.100", 0.125", 0.160", 0.200", 0.250"Custom made configurations available upon request

TIF500-40-11US Datasheet-REV02.pdf

Features:
>  Good thermal conductive: 4.0 W/mK
>Thickness:4.5mmT
>hardnesses :20 (Shore 00)
>Soft and compressible for low stress applications
>Naturally tacky needing no further adhesive coating
>Electrically isolating

Applications:
>Telecommunication hardware
>Handheld portable electronics
>Semiconductor automated test equipment (ATE)
>GPS navigation and other portable devices
>CD-Rom, DVD-Rom cooling
>LED Power Supply
>LED Controller

Our services

Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.



Standard Sheets Sizes:

8" x 16"(203mm x 406mm)



TIF™ series Individual die cut shapes can be supplied.



Company Profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.





FAQ:
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.

Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
