Fire Retardant And High-Temperature Resistant Thermal Insulation Gasket For PC
Fire Retardant And High-Temperature Resistant Thermal Insulation Gasket For PC
The TIS™118-02 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.
Features
> High thermal conductive and high dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

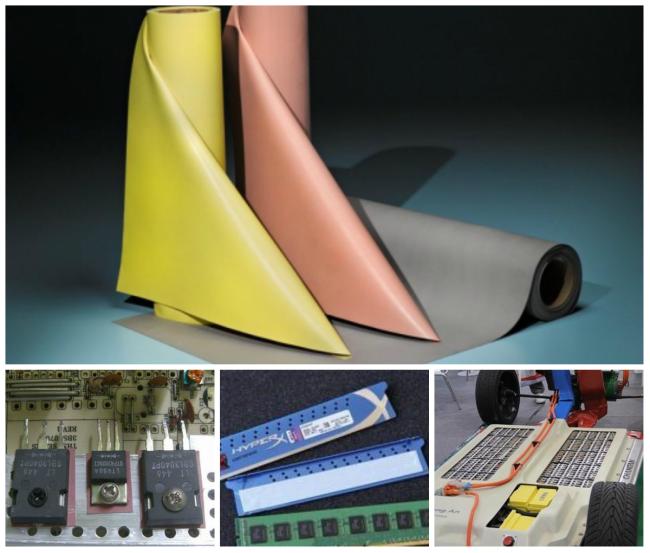

Applications
> CPU
> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Car Battery & Power Supply
> Power semiconductors
> Audio and Video components
> Motor controllers
| Typical Properties TIFTM118-02 Series | ||
| Color | Pink | Visual |
| Construction & Composition | Ceramic filled silicone elastomer/ Fiberglass | ****** |
| Thickness | 0.45mm | ASTM D374 |
| Specific Gravity | 1.751 g/cc | ASTM D297 |
| Hardness | 50 Shore A | |
| Tensile Strength | 425 Kpsi | ASTM D412 |
| Continuous Use Temperature | -45~180℃ | ****** |
| Dielectric breakdown voltage | ＞3500VAC | ASTM D149 |
| Dielectric Constant@1MHz | 5.5 MHz | ASTM D150 |
| Volume Resistivity | 4.0x103 Ohm-cm | ASTM D257 |
| Thermal Conductivity | 1.0W/mk | ISO22007.2.2 |
| Flame Rating | 94 V0 |
UL E331100 |
Standard Thicknesses:
0.009"(0.228mm), 0.012"(0.304mm), 0.018"(0.457mm), Consult the factory alternate thickness.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.
Standard Sizes:
12" x 160" (304mm x 48.76M)
lndividual die cut shapes can be supplied.
Company Profile
With professional R&D capabilities and many year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
