Wholesaler Customize Thickness And Size Die Cut 8.0W Thermal Pad 5.0mm Conductive Silicone Thermal Pad
Wholesaler Customize Thickness And Size Die Cut 8.0W Thermal Pad 5.0mm Conductive Silicone Thermal Pad

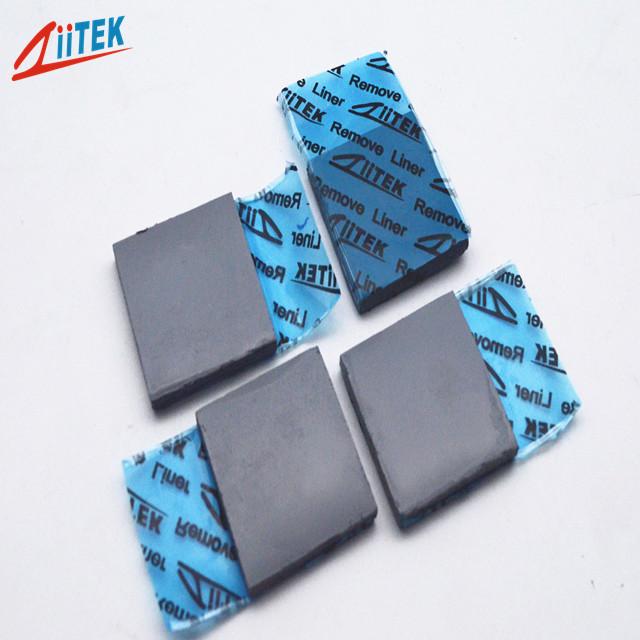

The TIF7200Q thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.
Features:
> Good thermal conductive:8.0 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
> Easy release construction
> Electrically isolating
> High durability
Applications:
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module
| Typical Properties of TIF7200Q Series | ||
| Color | Gray | Visual |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** |
| Specific Gravity | 3.55g/cc | ASTM D297 |
| thickness | 0.20"(5.0mm) | ASTM D374 |
| Hardness | 60±10 (Shore 00) | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ****** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 4.5MHz | ASTM D150 |
| Volume Resistivity | 5.2X10¹³Ohm-meter | ASTM D257 |
| Fire rating | 94 V0 | equivalent UL |
| Thermal conductivity | 8.0W/m-K | ASTM D5470 |
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
