Thermal Gap Filler Providing Superior 4.0W/mK Thermal Conductivity and Electrical Insulation for Electronic Device Applications

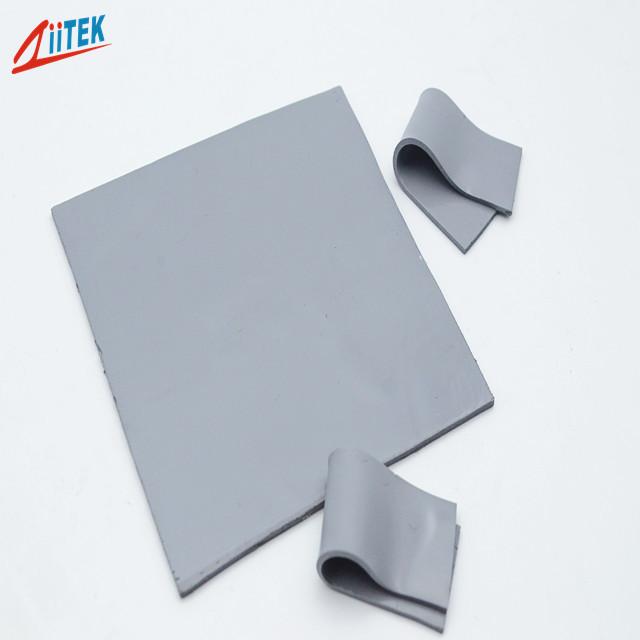

The TIF®100-40-10F Series is a structurally supportive thermal pad designed to provide high heat dissipation while also ensuring structural support and durability. It can reliably fill interface gaps, transfer heat, and offer mechanical support for stacked components, resisting compressive deformation. This product is an ideal choice for applications that require a balance between heat dissipation, insulation, and mechanical stability.
- High thermal conductivity
- Good softness and fillability
- Self-adhesive without the need for additional surface adhesives
- Good insulation performance
- Power tools
- Network communication products
- Electric vehicle batteries
- Computer CPU/GPU Cooling
- New energy vehicle power systems
- Signal communication
- New energy vehicle
- Motherboard chip
- Radiator
- AI Processors AI Server
| Property | Value | Test Method |
|---|---|---|
| Color | Gray | Visual |
| Construction | Ceramic filled silicone elastomer | - |
| Density (g/cm³) | 3.2 | ASTM D792 |
| Thickness Range (inch/mm) | 0.010~0.020 | 0.030~0.200 0.25~0.50 | 0.75~5.00 |
ASTM D374 |
| Hardness (Shore 00) | 65 | 60 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | - |
| Breakdown Strength (V/mm) | ≥5500 | ASTM D149 |
| Dielectric Constant @1MHz | 8.0 | ASTM D150 |
| Volume Resistivity (Ohm-meter) | ＞1.0×10¹² | ASTM D257 |
| Flame Rating | V-0 | UL 94 (E331100) |
| Thermal Conductivity (W/m-K) | 4.0 | ASTM D5470 ISO22007 |
Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm), with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass)
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening)
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive)
The TIF® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.
Packaging Details:
- PET film or foam for protection
- Paper card to separate each layer
- Export carton inside and outside
- Customized packaging available to meet customer requirements
Lead Time: 5000 pieces - To be negotiated
