2.0W/mK PINK High Voltage Isolation Thermal Gap Filler, TIF100-20-15S Cooling Heatsink 45 Shore 00 -50 to 200℃
2.0W/mK PINK High Voltage Isolation Thermal Gap Filler, TIF100-20-15S Cooling Heatsink 45 Shore 00 -50 to 200℃
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

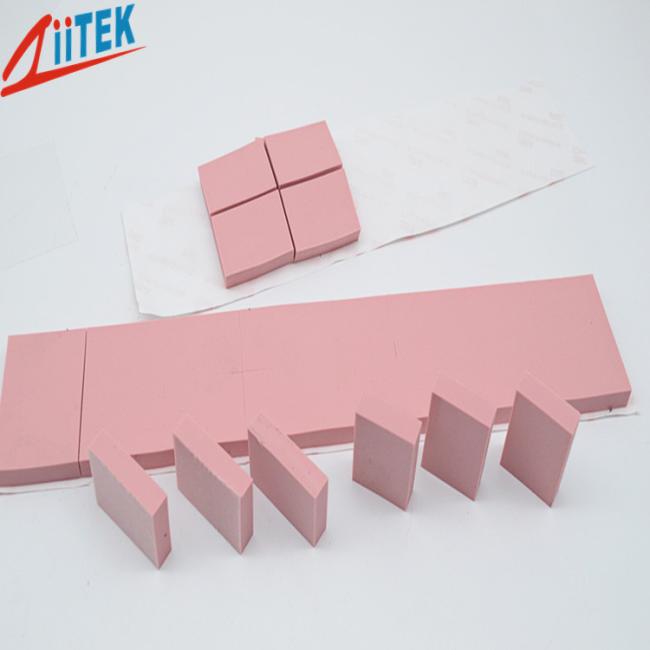

The TIF100-20-15S is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling
Features:
> Good thermal conductive:2.0 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
|
Typical Properties of TIF™100-20-15S Series
|
||||
|
Color
|
Pink |
Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** | 10mils / 0.254 mm | 0.21 |
| 20mils / 0.508 mm | 0.27 | |||
|
Specific Gravity
|
2.80 g /cc | ASTM D297 |
30mils / 0.762 mm |
0.39 |
|
40mils / 1.016 mm |
0.43 | |||
|
Heat Capacity
|
1 l /g-K | ASTM C351 |
50mils / 1.270 mm |
0.50 |
|
60mils / 1.524 mm |
0.58 |
|||
|
Hardness
|
45 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
0.65 |
|
80mils / 2.032 mm |
0.76 | |||
|
Tensile Strength
|
55 ps |
ASTM D412 |
90mils / 2.286 mm |
0.85 |
|
100mils / 2.540 mm |
0.94 | |||
|
Continuos Use Temp
|
-50 to 200℃ |
*** |
110mils / 2.794 mm |
1.00 |
|
120mils / 3.048 mm |
1.07 | |||
|
Dielectric Breakdown Voltage
|
>10000 VAC | ASTM D149 |
130mils / 3.302mm |
1.16 |
|
140mils / 3.556 mm |
1.25 | |||
|
Dielectric Constant
|
7.5 MHz | ASTM D150 |
150mils / 3.810 mm |
1.31 |
|
160mils / 4.064 mm |
1.38 | |||
|
Volume Resistivity
|
8X1012Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.43 |
|
180mils / 4.572 mm |
1.50 | |||
|
Fire rating
|
94 V0 |
equivalent UL |
190mils / 4.826 mm |
1.60 |
|
200mils / 5.080 mm |
1.72 | |||
|
Thermal conductivity
|
2.0 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
