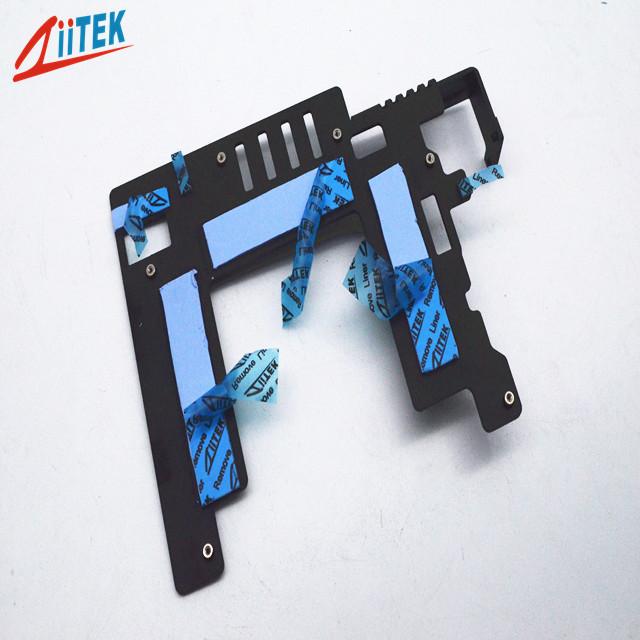

Blue Silicone-Based Thermal Gap Pad Thermal Management Thermal Conductive Material For AI Processors AI Servers
Blue Silicone-Based Thermal Gap Pad Thermal Management Thermal Conductive Material For AI Processors AI Servers
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
The TIF®100-30-05E is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features:
> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications
> Easy release construction
> Electrically isolating
> High durability
Applications:
> LED floor light
> Routers
> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
| Typical Properties of TIF®100-30-05E Series | |||
| Property | Value | Test method | |
| Color | Blue | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.0 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 35 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 3.0 | ASTM D5470 | |
| 3.0 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mmX406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1(Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
For other thicknesses or more information, please contact us.
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Q: What thermal conductivity test method was used to achieve the values given on the data sheets?
A: A test fixture is utilized that meets the specifications outlined in ASTM D5470.
Q: Is GAP PAD offered with an adhesive?
A: Currently, Most of thermal gap pad surface has double side natural inherent tack,Non-stick surface can also be treated according to customer's requirements.
