Garnet silicone Thermal gap filler Heatsink Thermal Pad 6.0 W/MK

Garnet silicone Thermal gap filler Heatsink Thermal Pad 6.0 W/MK

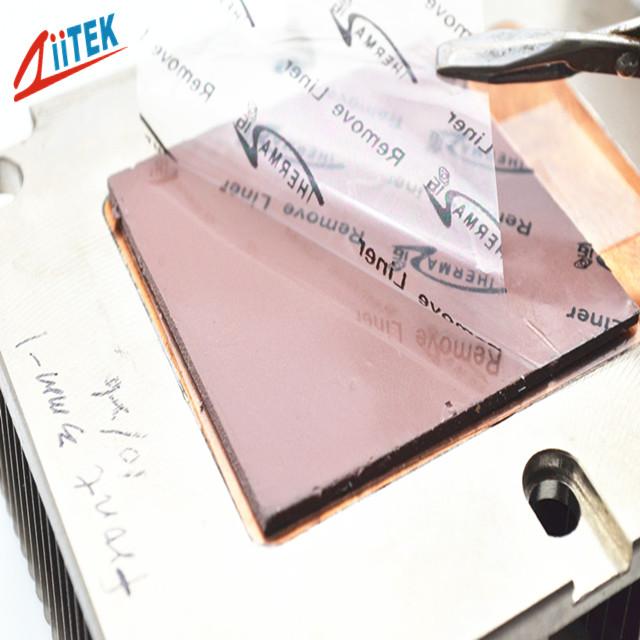

The TIF600P Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:

>  Good thermal conductive:6.0 W/mK

>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Available in varies thickness

Applications:

>  Cooling components to the chassis of frame
>  High speed mass storage drives
>  Heat Sinking Housing at LED-lit BLU in LCD
>  LED TV and LED-lit lamps
>  RDRAM memory modules
>  CD-Rom, DVD-Rom cooling

Typical Properties of TIF™600P Series
Color	Garnet	Visual	Composite Thickness	hermalImpedance @10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.21
			20mils / 0.508 mm	0.27
Specific Gravity	2.95 g /cc	ASTM D297	30mils / 0.762 mm	0.39
			40mils / 1.016 mm	0.43
Heat Capacity	1 l /g-K	ASTM C351	50mils / 1.270 mm	0.50
			60mils / 1.524 mm	0.58
Hardness	52 Shore 00	ASTM 2240	70mils / 1.778 mm	0.65
			80mils / 2.032 mm	0.76
Tensile Strength	55 ps	ASTM D412	90mils / 2.286 mm	0.85
			100mils / 2.540 mm	0.94
Continuos Use Temp	-50 to 200℃	***	110mils / 2.794 mm	1.00
			120mils / 3.048 mm	1.07
Dielectric Breakdown Voltage	>10000 VAC	ASTM D149	130mils / 3.302mm	1.16
			140mils / 3.556 mm	1.25
Dielectric Constant	7.5 MHz	ASTM D150	150mils / 3.810 mm	1.31
			160mils / 4.064 mm	1.38
Volume Resistivity	8X1012Ohm-meter	ASTM D257	170mils / 4.318 mm	1.43
			180mils / 4.572 mm	1.50
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	1.60
			200mils / 5.080 mm	1.72
Thermal conductivity	6 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470
