Naturally Tacky Blue Good Thermal Conductive Pad 45 Shore 00 For CPU Heat Dissipation
Naturally Tacky Blue Good Thermal Conductive Pad 45 Shore 00 For CPU Heat Dissipation
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Products description

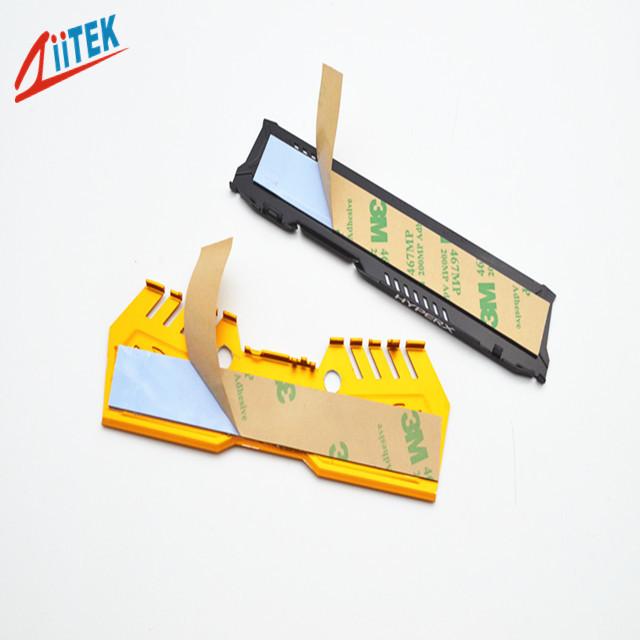

The TIF®100-05S Series is a wellbalanced,general-purpose thermal pad.It offers good thermal conductivity and moderate hardness.This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.
Features:
> Good thermal conductive
> Naturally tacky needing no further adhesive coating
> Fiberglass reinforced for puncture, shear and tear resistance
> Moldability for complex parts
> Easy release construction
Applications:
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
| Typical Properties of TIF®100-05S Series | |||
| Property | Value | Test method | |
| Color | Blue | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 2.0 | ASTM D792 | |
| Thickness Range(inch/mm) |
0.010~0.020 (0.25~0.5) |
0.030~0.200 (0.75~5.0) |
ASTM D374 |
| Hardness | 65 Shore 00 | 45 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -40 to 200℃ | *** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 4.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Thermal Conductivity (W/m-K) | 1.5 | ASTM D5470 | |
| 1.5 | ISO22007 | ||
| Fire rating | V-0 | UL 94 (E331100) | |
Standard Thickness:0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm X406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Advantage
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
