Stable Operation Over A Wide Temperature Range White 0.8W/MK Thermal Conductivity Double-Sided Adhesive Tape For Power Device
Stable Operation Over A Wide Temperature Range White 0.8W/MK Thermal Conductivity Double-Sided Adhesive Tape For Power Device
The TIA®804 Series is filled with good thermal conductivity ceramic particles, featuring excellent thermal conductivity, strong adhesion and electrical insulation. It is suitable for bonding and fixing electronic components to heat sinks or housings, such as LED modules, power devices, communication equipment and other scenarios. The product is solvent-free, pollution-free, easy to construct, and can replace the traditional combination scheme of screw fixation and thermal conductive grease.
Features
> Thermal Conductivity: 0.8W/mK
> High performance, thermally conductive acrylic adhesive
> Allow for good conformability to irregular surfaces and good electrical isolation
> Easy Application
> Eliminates need for external hardware (screws, clips, etc.)
> Available with easy release tabs
Applications
> Heat sink onto BGA graphic processor
> Heat sink to computer processor
> Heat sink onto drive processor
> LED Power Supply
> LED Controller
> LED Lights
> LED Ceilinglamp
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power Supply
> Waterproof LED Power Supply
> Piranha wroof and common lED module
> LED module for Channelletters
> SMD LED module
> LED Flesible strip, LED bar
> LED PanelLight
| Typical Properties of TIA®800 Series | ||||||||
| Product Name | TIA®802 | TIA®804 | TIA®806 | TIA®808 | TIA®810 | TIA®812 | TIA®815 | Test Method |
| Color | White | Visual | ||||||
| Adhesive Type | Acrylic Adhesive | ****** | ||||||
| Continuous Use Temp | -40℃ to 125℃ | ****** | ||||||
| Thickness | 0.002" 0.05mm | 0.004" 0.10mm | 0.006" 0.15mm | 0.008" 0.20mm | 0.010" 0.25mm | 0.012" 0.30mm | 0.015" 0.38mm | ASTM D374 |
| Voltage Breakdown | ≥600 | ≥1200 | ≥1800 | ≥2500 | ≥2700 | ≥3000 | ≥4000 | ASTM D149 |
| Thermal Conductivity | 0.8 W/mK | ASTM D5470 | ||||||
| 180° Peel Adhesion (gf/inch) Steel, Immediate | ≥ 1200 | ASTM D3330 | ||||||
| 180° Peel Adhesionk (gf/inch) Steel, 24 hrs | ≥ 1400 | ASTM D3330 | ||||||
| Holding Power (H/inch) @25℃ | ≥ 48 Hours | ASTM D3654 | ||||||
| Holding Power (H/inch) @80℃ | ≥ 48 Hours | ASTM D3654 | ||||||
Standard Thickness:
Standard Size: 16" x 100" (406 mm x 30.48 M)
Reinforcing Carrier: TIA®800 Series rolls can be reinforced with glass fiber.

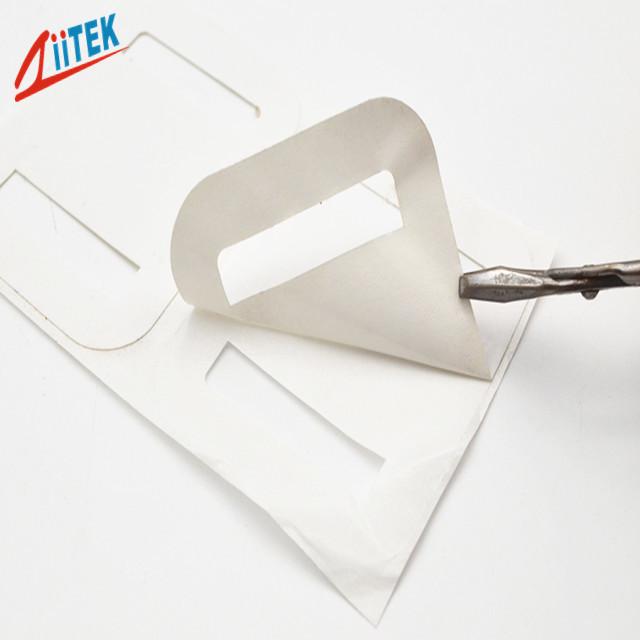

The TIA® series can be provided with die-cutting into vaious shapes, For different thicknesses or more information about
thermally conductive materials, please contact our company.
Company profile
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
