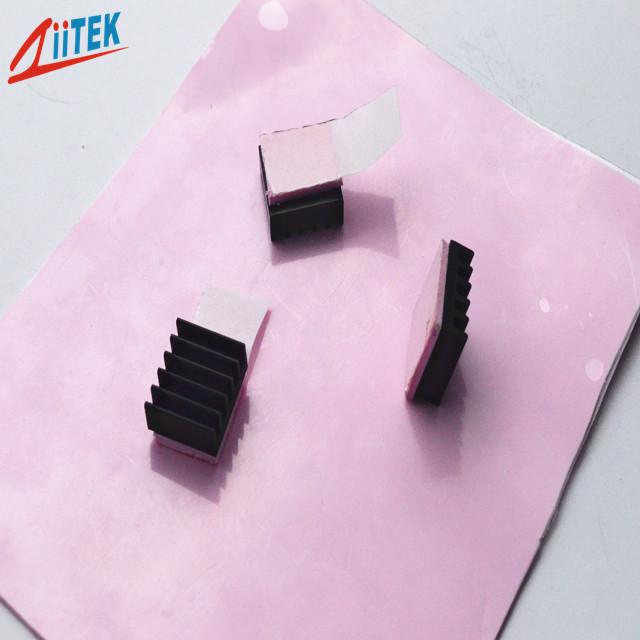

Application In Electronic Parts High Thermal Conductivity 3w Thermal Conductive Silicone Pad
Application In Electronic Parts High Thermal Conductivity 3w Thermal Conductive Silicone Pad
The TIF140-30-15ESeries is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF140-30-15 is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Features:
> Good thermal conductive: 3 W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
Applications
> LED lighting
> Micro heat pipe
> Electronic parts
> Telecommunication hardware
> Cooling components to chassis frame or other mating components
> Home and small office network equipment
> Handheld portable electronics
> Plasma supply panels
> Semiconductor automated test equipment (ATE)
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Radios
> Power electronics
|
Typical Properties of TIF140-30-15E Series
|
||
|
Color
|
Pink |
Visual |
|
Construction &
Compostion |
Ceramic filled silicone rubber
|
*** |
|
Specific Gravity
|
2.37 g/cc |
ASTM D297 |
|
Heat Capacity
|
1 l/g-K |
ASTM C351 |
|
Hardness
|
35 Shore 00 | ASTM 2240 |
|
Tensile Strength
|
40 psi |
ASTM D412 |
|
Continuos Use Temp
|
-50 to 200℃ |
*** |
|
Dielectric Breakdown Voltage
|
>10000 VAC | ASTM D149 |
|
Dielectric Constant
|
5.5 MHz | ASTM D150 |
|
Volume Resistivity
|
7.8X10" Ohm-meter | ASTM D257 |
|
Fire rating
|
94 V0 |
equivalent UL |
|
Thermal conductivity
|
3 W/m-K | ASTM D5470 |
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
