High Thermal Conductivity 3.0W/M.K Silicone Thermal Conductive Pad For LCD TV
High Thermal Conductivity 3.0W/M.K Silicone Thermal Conductive Pad For LCD TV

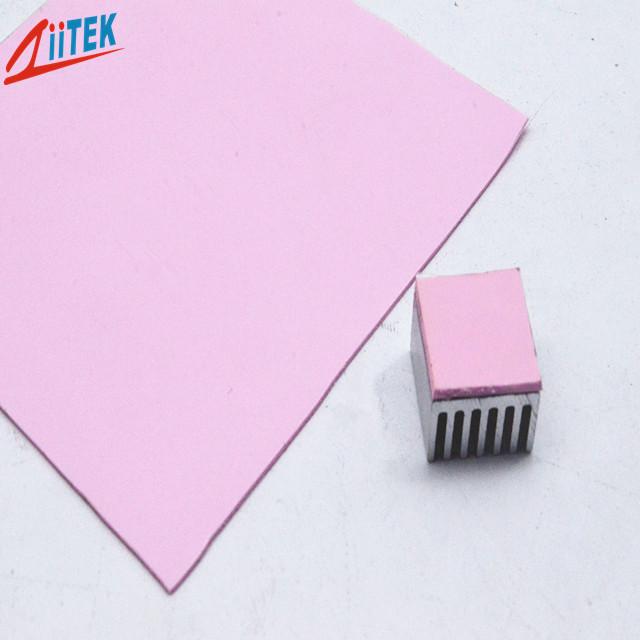

The TIF®140-30-25E thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features:
> Good thermal conductive: 3.0W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
| Typical Properties of TIF®140-30-25E Series | ||
| Property | Value | Test method |
| Color | Pink | ***** |
| Construction &Compostion | Ceramic filled silicone elastomer | ***** |
| Specific Gravity | 3.0 g/cc | ASTM D297 |
| Hardness | 35 Shore 00 | ASTM 2240 |
| Thickness range | 0.020"(0.5mm)~0.200"(5.0mm) | ASTM D374 |
| Continuos Use Temp | -40 to 160℃ | ***** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 5.0 MHz | ASTM D150 |
| Volume Resistivity | 1.0X1012Ohm-meter | ASTM D257 |
| Flame rating | 94 V0 | UL E331100 |
| Thermal conductivity | 3.0 W/m-K | ASTM D5470 |
Standard Thickness: 0.020" (0.5 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIFseries is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
