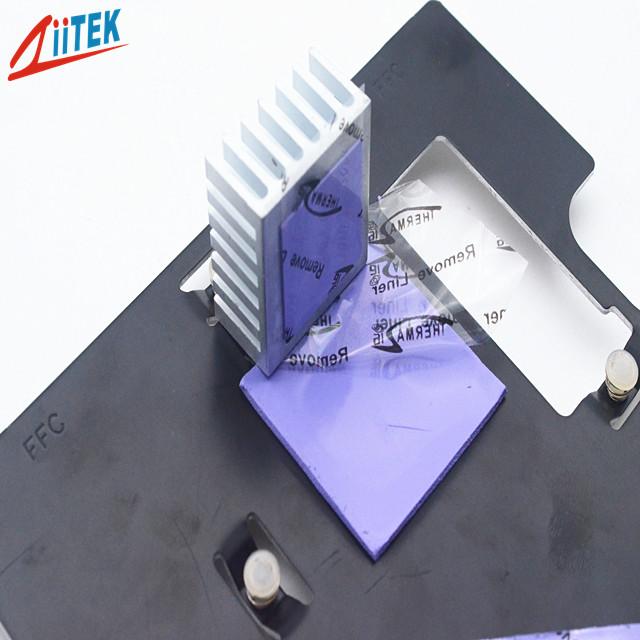

2.5mm T Thermal Gap Filler , Led Lighting Heat Insulation Material TIF6100
2.5mm T Thermal Gap Filler , Led Lighting Heat Insulation Material TIF6100
The TIF6100 use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.
Features:
> Thcikness: 2.5 mmT
> Perfect thermal conducting
> Good thermal conductive: 4.7 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
Applications:
> Telecommunication hardware
> Wireless routers
> Cooling components to the chassis of frame
> Handheld portable electronics
> Semiconductor automated test equipment
> RDRAM memory modules
> LED TV and LED-lit lamps
> Automotive engine control units
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> Micro heat pipe thermal solutions
|
Typical Properties of TIF™6100
|
||||
|
Color
|
purple | Visual | Composite Thickness | hermalImpedance @10psi (℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone elastomer
|
*** | 10mils / 0.254 mm | 0.21 |
| 20mils / 0.508 mm | 0.27 | |||
|
Specific Gravity
|
2.88g/cc | ASTM D297 |
30mils / 0.762 mm |
0.39 |
|
40mils / 1.016 mm |
0.43 | |||
|
Heat Capacity
|
1 l /g-K | ASTM C351 |
50mils / 1.270 mm |
0.50 |
|
60mils / 1.524 mm |
0.58 |
|||
|
Hardness
|
45 Shore 00 | ASTM 2240 |
70mils / 1.778 mm |
0.65 |
|
80mils / 2.032 mm |
0.76 | |||
|
Tensile Strength
|
40 psi |
ASTM D412 |
90mils / 2.286 mm |
0.85 |
|
100mils / 2.540 mm |
0.94 | |||
|
Continuos Use Temp
|
-40 to 160℃ |
*** |
110mils / 2.794 mm |
1.00 |
|
120mils / 3.048 mm |
1.07 | |||
|
Dielectric Breakdown Voltage
|
>5000 VAC | ASTM D149 |
130mils / 3.302mm |
1.16 |
|
140mils / 3.556 mm |
1.25 | |||
|
Dielectric Constant
|
7.5 MHz | ASTM D150 |
150mils / 3.810 mm |
1.31 |
|
160mils / 4.064 mm |
1.38 | |||
|
Volume Resistivity
|
8.0X1013 Ohm-meter | ASTM D257 |
170mils / 4.318 mm |
1.43 |
|
180mils / 4.572 mm |
1.50 | |||
|
Fire rating
|
94 V-0 |
equivalent UL |
190mils / 4.826 mm |
1.60 |
|
200mils / 5.080 mm |
1.72 | |||
|
Thermal conductivity
|
4.7 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
