Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic, Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

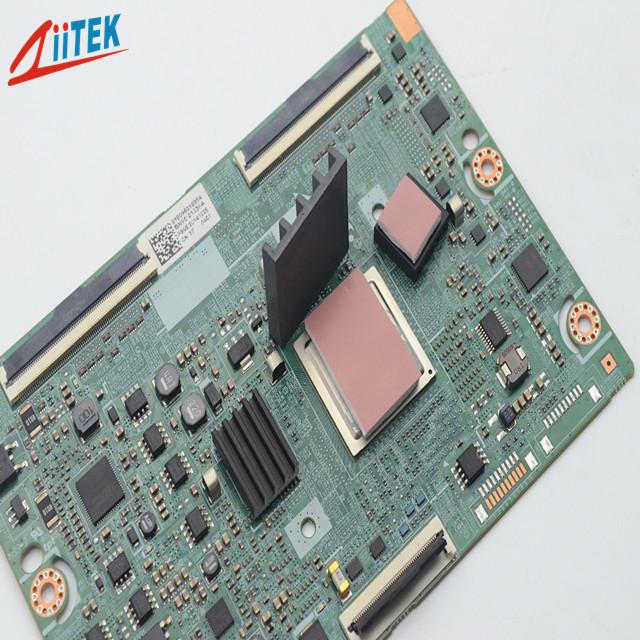

The TIF™200-02E is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
Features
> Good thermal conductive
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Applications
> CPU
> display card
> mainboard/mother board
> notebook
> power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
| Typical Properties of TIF200-02E | ||
| Color | PINK | Visual |
| Construction &Compostion | Ceramic filled silicone elastomer | ***** |
| Specific Gravity | 2.2 g/cc | ASTM D297 |
| Hardness | 35 Shore 00 | ASTM 2240 |
| Thickness range | 0.020"(0.5mm)~0.200“(5.0mm) | ASTM D374 |
| Continuos Use Temp | -45 to 200℃ | ***** |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 |
| Dielectric Constant | 4.0 MHz | ASTM D150 |
| Volume Resistivity | 1.0X10¹² Ohm-cm | ASTM D257 |
| Fire rating | 94 V0 | equivalent UL |
| Thermal conductivity | 1.25 W/m-K | ASTM D5470 |
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
