RoHS Compliance Thermal Pad Good Heat Dissipation Silicone Thermal Conductive Pad For Electrical Device


Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

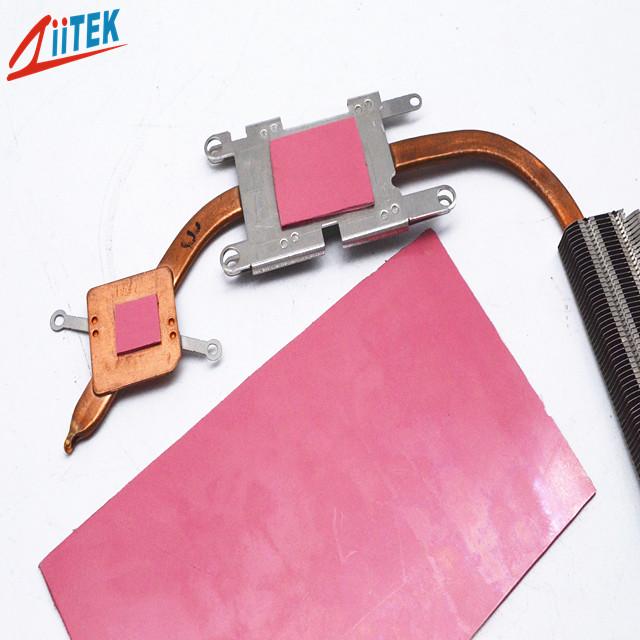

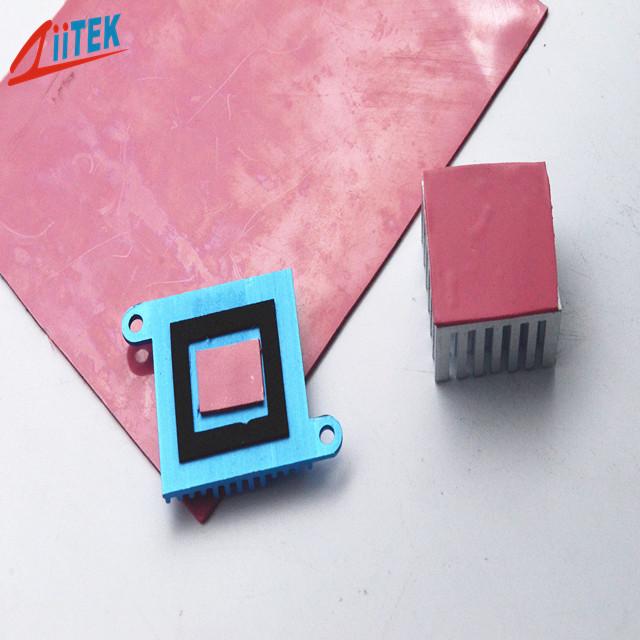

The TIF180-30-50E Series thermally conductive interface materials areapplied to fill the air gaps between the heating elements and the heatdissipation fins or the metal base.Their flexibility and elasticity make themsuited to coat very uneven surfaces.Heat can transmit to the metal housingor dissipation plate from the heating elements or even the entire PCB,which effecitly enhances the efficiency and life-time of the heat-generatingelectronic components.

Features

> RoHS compliant 3W/mK
> UL recognized
> Fiberglass reinforced for puncture, shear and tear resistance
> Easy release construction
> Electrically isolating
> High durability

Applications:


> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
