Colored Touch Screen Front Loading Veterinary Autoclave Compliance With cGMP Regulations

Colored Touch Screen Front Loading Veterinary Autoclave Compliance With cGMP Regulations

Descripition

• Chamber capacity 240 liters
• Chamber electrolytic polishing
• Hinged door with automatic locking
• User-friendly HMI
• Minimal media consumption

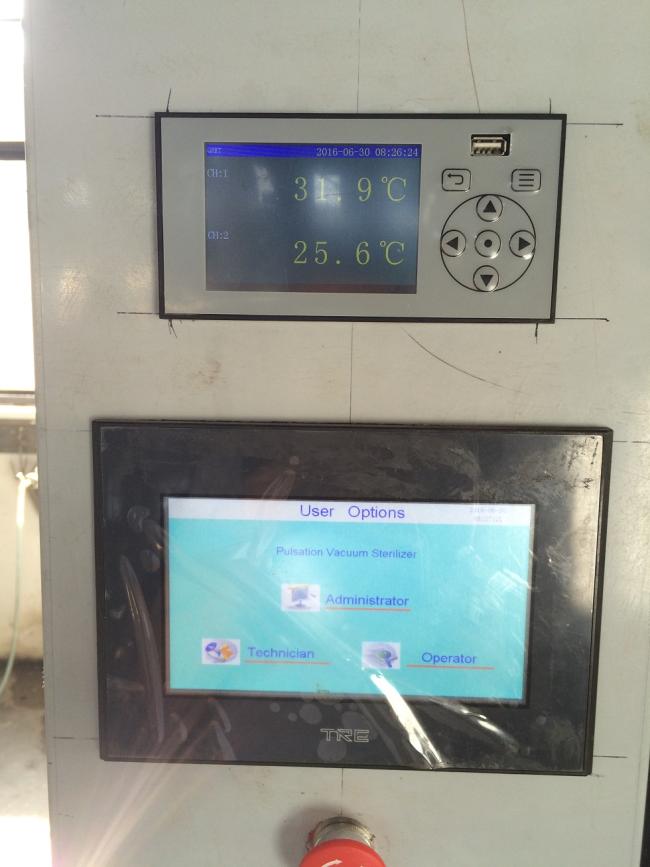

• 5.7 inch color touch screen
• Safety-stop system for door movement in case of obstruction

General Safety Features

• Double Independent Monitoring: The combined digital and mechanical monitoring  provides a cross reference and guarantees accurate results. The operator has  two independent means to monitor temperature and pressure.
• Safety Valves: Both the chamber and the jacket are equipped with safety valves – if the pressure exceeds the allowed limit the safety valves will discharge.
• Built-in Steam Generator Safety: A water level monitoring system maintains a constant  water level and ensures safe operation of the heaters.
• Emergency Shut-Off: Easily accessible emergency switches for immediate and safe shut down.

Animal Care Applications

The autoclave is designed to cover a large field of applications for Animal Care and laboratories.

Specifications

Materials Options

1. Chamber Options

    316L Stainless Steel

2. Jacket Options

    Carbon Steel, 304L Stainless Steel, 316L Stainless Steel

3. Plumbing Options

    316L Stainless Steel

Properly Sizing An Autoclave For Your Animal Lab

Steam sterilization is routinely used in animal laboratories for two reasons:

 1) To sterilize animal cages in order to create a pathogen-free housing environment

 2) To properly dispose of harmful waste products.

Since autoclaves are essential for everyday laboratory operation, it is important to select a

chamber size with enough capacity to meet the lab’s demand for cage and waste processing.Under-sizing the autoclave will leave it insufficient to meet the lab’s demands while an oversized autoclave takes up valuable lab space and carries a higher upfront cost.

An animal lab facility should consider two primary factors before making a sterilizer purchasing decision:

• The facility’s Animal Biosafety Level requirement
• The number of animal cages that need to be processed

Brochure load down from here

Medpharm medical large steam autoclave brochure.pdf
