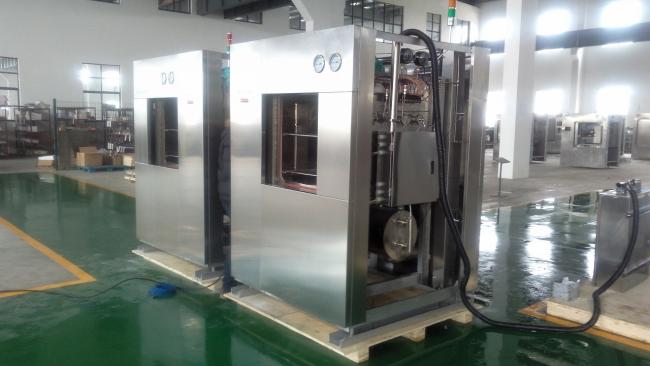

Horizontal Loading Compact Steam CSSD Sterilizer with PLC Controlled
Price:
Negotiation
MOQ:
1 pc
Delivery Time:
30 working days after received your payment
Brand:
Medpharm
Product Description
Horizontal Loading Compact Steam CSSD Sterilizer with PLC Controlled
Sterilization Cycles
| Cycle name | Further details | Application |
| Instruments/Tools | 3 times Vacuum, expose temperature 132℃, expose time 8 min, drying time 5 min. | Solid materials to be sterilized: ●Packaged instruments ●Empty glass containers ●Empty metal containers Porous materials to be sterilized: ●Rubber articles |
| Clothing | 3 times Vacuum, expose temperature 121℃, expose time 15 min, drying time 25 min. | Materials to be sterilized from which air can’t be easily displaced ●Textile |
| User Programmable | All preset parameters can be reset; Multiple customized programs can be set and stored by user. | Customized |
| Test programs | ||
| B-D Test | 3 times Vacuum, expose temperature 134℃, expose time 4 min, drying time 3 min. | Test program |
| Vacuum Leak Test | Test the chamber connecting parts’ tightness effect. It’s important to ensure the sterilization effect. | Test program |
Description

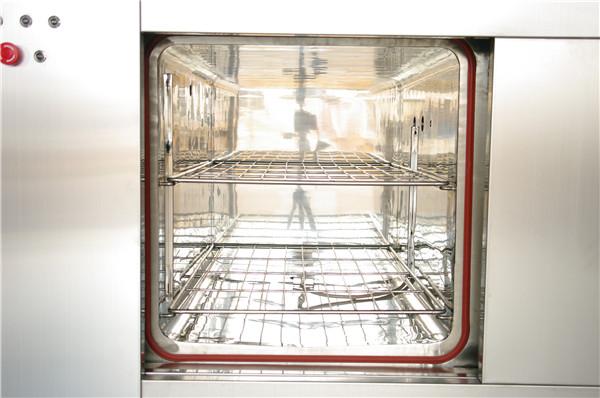

- With innovative high performance sterilizing technology, Medpharm hospital CSSD sterilizer chamber is made of AISI 316L stainless steel and entirely covered by a high efficiency jacket to ensure fast heating and reduced cycle times.This ensures even heat distribution and reduced utilities consumption for heating and cooling.
- F0 Cycle: Calculates the sterilization time based on load temperature and duration exposed.These calculations are based on predetermined set points. The result is controlled exposure time.
- 20 Ra. Polish: The internal chamber and door can be polished to a 20 Ra. finish or better for critical applications.
- Steam to Steam Generator: A heat exchanging system used to create clean steam from a pure water source and house steam or electric boiler system. These systems are connected directly to the chamber.
- Air Inlet Filter: An air inlet filter rated at 0.2 um. For use in high level sterilization.
- Single and double door pass through options
- Technical service access either on the left or right loading side
- 20 programmes, 12 factory pre-defined, 8 custom.
Applications
Surgical packs, liquids in open or vented containers.
Competitive Advantage
This new chamber design minimizes dead space for optimal loading and throughput.
Specification
| Model | Chamber Size | Overall Size | Net Weight | Steam | Water | Power |
| W*H*D mm | W*H*D mm | Kg | Kg/cycle | Kg/cycle | KVA | |
| MD-0.11V | 400*400*700 | 1000*1800*1040 | 650 | 14 | 15 | 2 |
| MD-0.16V | 400*400*1000 | 1000*1800*1340 | 700 | 16 | 20 | 2 |
| MD-0.20V | 400*400*1300 | 1000*1800*1640 | 750 | 18 | 25 | 2 |
| MD-0.24V | 600*600*670 | 1200*2000*1010 | 800 | 20 | 30 | 2 |
| MD-0.30V | 600*600*840 | 1200*2000*1180 | 850 | 22 | 35 | 2 |
| MD-0.36V | 600*600*1000 | 1200*2000*1340 | 900 | 25 | 40 | 2 |
| MD-0.45V | 600*600*1250 | 1200*2000*1590 | 980 | 27 | 50 | 2 |
| MD-0.60V | 600*600*1670 | 1200*2000*2010 | 1100 | 30 | 60 | 3 |
Brochure load down from here
Medpharm medical large steam autoclave brochure.pdf
