DIN32676 Manual 3 Way Ball Valve For Hygienic Pipeline
SS304 316L Stainless Steel Sanitary Manual Three Way Ball Valves for Hygienic Pipeline Applications
Features:
- Integrated configuration design
- Very few flange connections, high sealing grade
- Small and light
- Long reliable lifetime
- Ideal application in vacuum fluid pipeline systems
- Wide range of sizes, connection ends, dimension standards

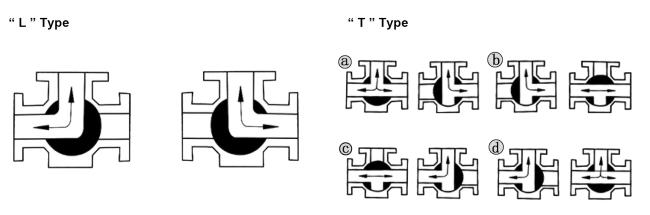

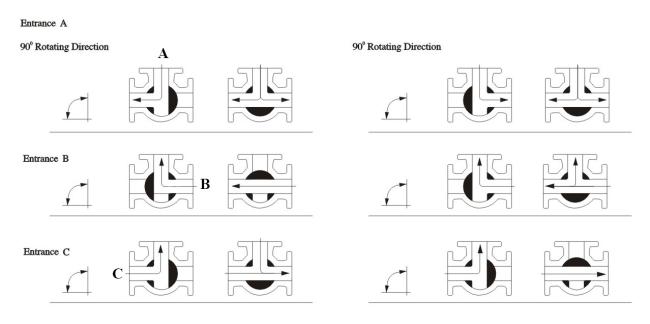

Flow Direction Diagram:
We produce both T-type and L-type sanitary three way ball valves. The T-type sanitary valve can connect three pipes in order to converge or divide fluid flows. The L-type valve can only connect two pipes in a pipeline for flow direction change purposes.
Specifications:
| Size: | 1/2”-4”, DN15-DN100 | |
| Valve Body Material: | SS304, SS316L | |
| Seal Material: | PTFE, EPDM, VQM, NBR, FPM or on request | |
| Connection End: | Weld, clamp, thread, flange | |
| Standard: | 3A, DIN, SMS, ISO/IDF, RJT | |
| Operation Way: | Manual Handle | |
| Max Temperature: | 10 bar | |
| Working Temperature: | -10°C to +120°C | |
| Surface Polishing: | On request | |
| Medium: | Dairy, food, beer, beverage, pharmacy, cosmetic, water etc. |
Applications:
This sanitary three way ball valve can help converge, divert hygienic fluids flow like beer, dairy, beverage, wine, water, cosmetics, pharmacy, or chemical on their production lines.

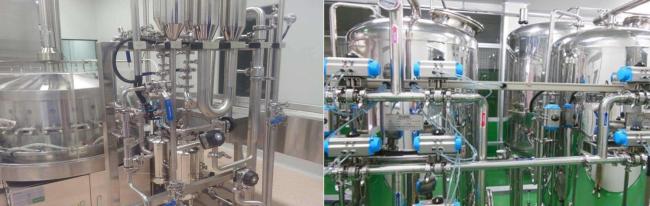

The below photo shows an application case that these hygienic three way manual ball valves and pneumatic three way ball valves are used in pharmaceutical evaporation systems and purified water filtration system. Other sanitary equipment and fluid pipeline system also utilize this kind of three way ball valve.
