High Sanitary Ball Valves , Stainless Steel Butterfly Valve For Beverage Industry
Price:
Negotiable
MOQ:
1 pc
Delivery Time:
1-2 weeks
Brand:
WLM
Product Description

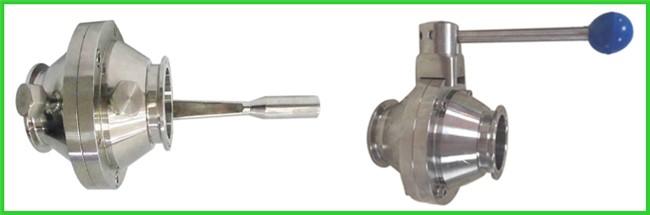

High Sanitation Hygienic 304 / 316L Stainless Steel Butterfly Type Ball Valve for Beverage Industry
Features:
- A ball valve with butterfly shape design
- Save much more space than traditional ball valve
- Light and small, good looking
- Cover advantages of both butterfly valve and ball valve
- Operated by plastic or stainless steel handle
Specifications:
| Connection standards | SMS, DIN, 3A, IDF, ISO, RJT |
| Material | 304 or 316L Stainless steel |
| Connection ends | Clamp End, Weld end, Male end and Female end |
| Port Size | 1/2"~4", DN10~DN150 |
| Gasket | EPDM, Silicone, Viton or custom |
| Ball Seat | PTFE |
| Manual drive | Muti-positon handle, Pull-rod handle |
|
Working temperature |
-20°C ~ +135°C (EPDM, Silicone) |
| Working Pressure | 0~10bar |
| Machine Processing | The most famous CNC Lathes from YAMAZAKI MAZAK in Japan |
| OEM | we can tailor special ball valves according to your drawings |

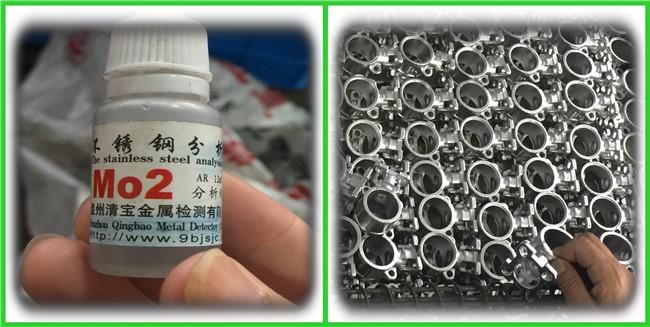

How do we control our material quality:
1. We do visual check 100% on each forged and casting parts
2. We do PMI test 100% online to check the stainless steel grade
Valve Mode Selection Tips:
To select the right model, please let us know below details:
- The medium?
- Valve body material: 304 or 316L?
- Sealing material: EPDM or PTFE?
- Port size ?
- Connection end standard: ISOxxxx, DINxxxx, 3A, SMSxxxx or other?
- Connection ends: Butt weld, clamp, thread, union, or flange?
- Any other special requirement, please specify
