Tri Clamp Sanitary Butterfly Valve With EP Finished Surface , Spring Return Actuation
Price:
Negotiable
MOQ:
Any quantity welcome
Delivery Time:
7-15 days
Brand:
WLM
Product Description
DIN / SMS / ISO / IDF / BS Stainless Steel Pneumatic Actuator Sanitary Tri Clamp Butterfly Valves
Features:
- Remote-controlled by stainless steel pneumatic actuator with high working efficiency and precise flow control on fluids
- Actuation principle can be double acting(NO or NC), or spring return
- Imported CNC machine to achieve much more accurate valve dimension
- EP finished surface to eliminate medium retention or contamination
- Connected to pipeline by clamp to achieve firm strong connection
- Clamp connection brings convenient installation and disassembly

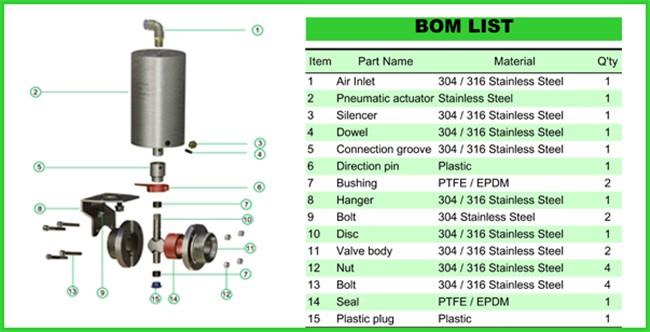

Configurations:
Specifications:
| Pneumatic Actuator: | Stainless Steel |
| Actuation Mode: | Normal Open, Normal Closed, Spring Return |
| Air Supply Pressure: | 5-7 bar |
| Hanger Size: | 8*8mm, 10*10mm, 11*11, 14*14mm |
| Valve Size: | 1” - 8”, DN25 - DN200 |
| Connection End: | Tri Clamp |
| Clamp Standard: | DIN11864, DIN11853, DIN32676, ISO2852, SMS3017, ASME BPE, BS4825 |
| Gasket: | Silicone, EPDM, Viton |
| Max Temperature: | 10 bar |
| Working Temperature: | -10°C to +120°C |
| Surface Polishing: | Ra≤0.8um |
Packing and Shipment:
1. Each valve is packed with bubble bag, then put into cartons
2. Catons can be put on plywood pallet or into plywood case
3. We are strategic agent of TNT, FedEx, UPS and DHL to help you save shipment cost
4. We are only 100KM from Shanghai, and arrange both sea and air shipment
5. Existing inventory of standard models ready for immediate delivery

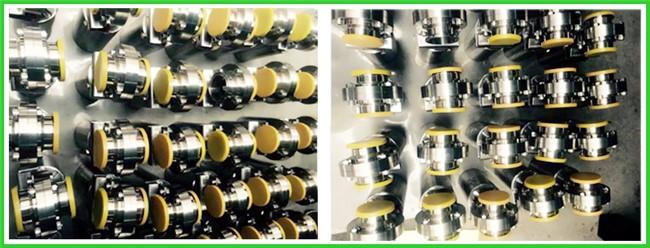

Valve Photo:

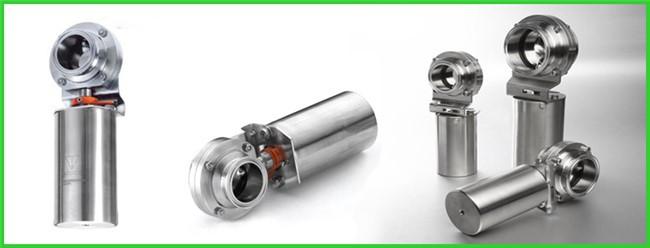

We have various kinds of sanitary pneumatic butterfly valves as showed in below photos:
