C - Top Intelligent Control Hygienic Valves Pneumatic Diverter Valve No Noise

Hygienic Sanitary C-Top Intelligent Control Pneumatic Shutoff Divert Valve Weld / Tri Clamp Connection

Product Description:

The hygienic sanitary shutoff divert valves are used to stop flow and change flow direction in stainless steel pipe systems for various hygienic industry applications. This kind of valve is operated by pneumatic actuator, and can also be installed with C-Top intelligent control head, to achieve more accurate and automatic operation.

Product Characteristics

1. Special application for various fluid mediums

2. Removable valve body with clamp connection

3. Diversity of pipe fittings (2-3 shutoff valves, 3-5 divert valves)

4. Freely and easily switch between manual and pneumatic modes

5. Anti-water hammer, no noise, reliable sealing performance

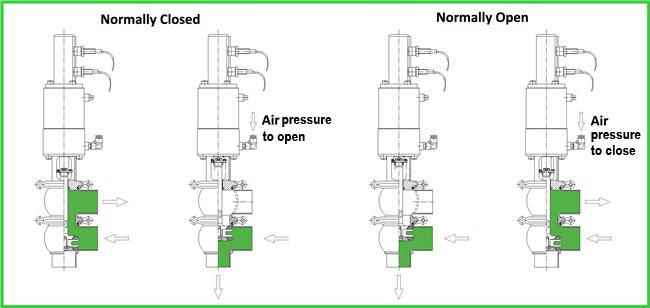

Working Principle:

Pneumatic actuator offers torque force to the valve stem. The valve stem exerts a pressure to the valve clack in axial direction, so the valve can be opened or closed to stop flow and change flow direction.

Specification Details

Size range: DN25~100, 3/4'', 1'', 1 1/4'', 1 1/2'', 2'', 3'', 4''

Gasket: EPDM, silicone, teflon (FDA approved raw material)

Material: SS304 or SS616L

Temperature: -10~+100℃

Working Pressure: 0~10 bar

Connection: Clamp, weld, thread, and so on

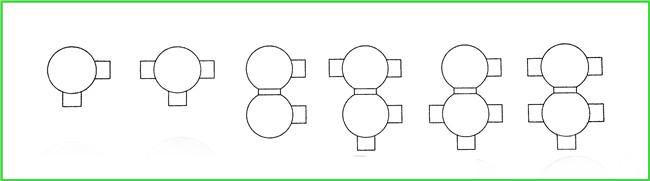

Valve Body Configurations

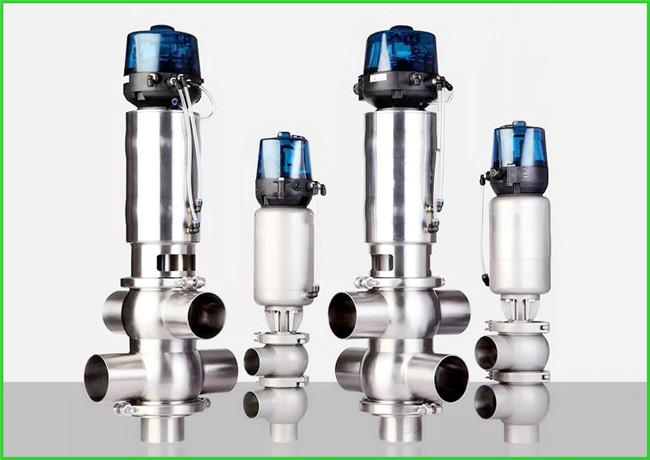

Product Show
