Clamped Sanitary 3 Way Ball Valve / Stainless Steel Pneumatic Ball Valves
Stainless Steel Sanitary Pneumatic Power Clamped Three 3 Way Ball Valves
Quick Details:
- Air pressure in pneumatic actuator automatically drives valve stem to rotate
- The ball core rotates accordingly to turn to different pipe line
- Can support very wide range of pipe diameter
- The ball core and gasket are completely separated under close and open condition from being contamintated by medium
- Reliable sealing performance and convenience for repair
Technical Features:

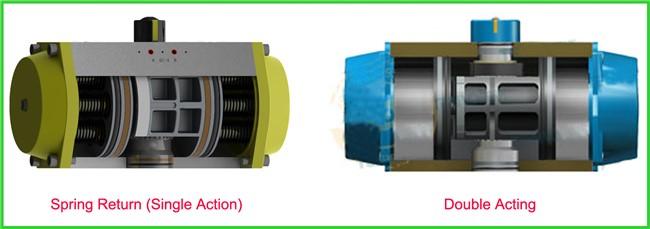

1. Aluminum Pneumatic Actuator can be in spring return structure or double acting structure

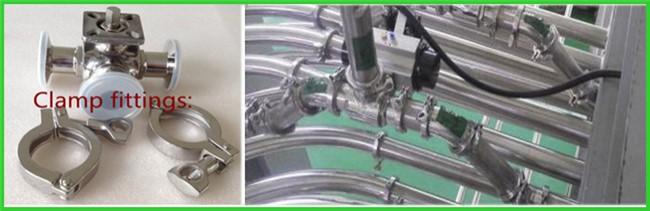

2. With clamp connection end, the valve can be easily installed and removed from the pipeline any time. It creates much convenience and saves time in daily valve and pipeline maintainance.
Flow Direction Diagram:
T-type: 4 way valve seat, balanced force, for flow division, mix and direction change
L-type: 2 way valve seat, for flow direction change
Specifications:
| Pneumatic actuator |
Type 1: Double action (NO or NC) ; Type 2: Spring automatic return |
| Air supply pressure |
3-8 bar |
| Solenoid valve accessories | Input 110-240VAC, output 12-24VDC |
| Nominal diameter | Φ25-Φ100; 1"-4" |
| Working pressure | 0-16 bar |
| Withstand temperature | -30~180°C (PTFE) |
| Connection end | Clamp |
| Body structure | 3 way ball core L and T-type |
| Clamp end dimension |
According to DIN, ISO, SMS, BS standards |
